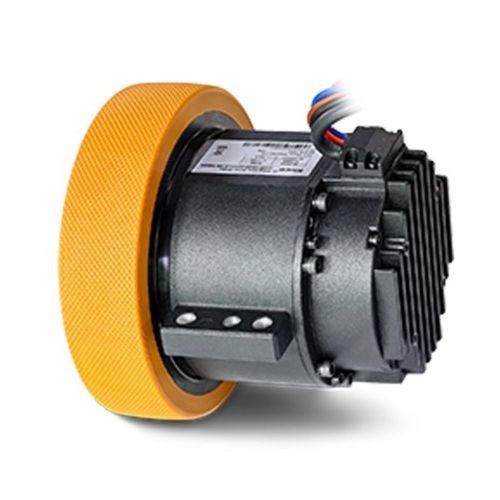

24 V wheel motor iWMC1041148 Vwith integrated driver and coderwith brake
Add to favorites
Compare this product
Characteristics
- Voltage
- 48 V, 24 V
- Configuration
- with brake, with integrated driver and coder, compact, frameless, lightweight
- Applications
- industrial, for drive systems, for AGV, for robotics, for delivery robot, for AMR, for medical applications
- Other characteristics
- with speed controller, direct-drive, with built-in encoder, integrated-drive, with control system, CANopen, with integrated controller, EtherCAT, high-performance, servo-driven, RS-485, with integrated motion controller, with electronic control, custom, motor design, motion control
- Power
Min.: 1.13 kW
(1.54 hp)Max.: 10.47 kW
(14.24 hp)- Intensity
Min.: 7 A
Max.: 100 A
- Torque
Min.: 3.6 Nm
(2.655224 ft.lb)Max.: 99 Nm
(73.018653 ft.lb)- Rotational speed
Min.: 2,000 rpm
(12,566.3706 rad.min-1)Max.: 3,000 rpm
(18,849.5559 rad.min-1)- Diameter
Min.: 150 mm
(5.91 in)Max.: 180 mm
(7.09 in)
Description
Introduction
The AGV wheel motor (also known as Hub Servo Motor) is a highly integrated electromechanical drive system that combines core components including planetary gear mechanism, servo motor, brake, encoder, drive controller and wheel assembly into a compact unit. This module adopts a frameless torque motor design to directly drive the wheel motion, replacing the traditional "motor + reducer + wheel" separated solution, and possesses high-precision motion control capabilities. It is primarily applied in AGVs (Automated Guided Vehicles), AMRs (Autonomous Mobile Robots) and industrial automation equipment, meeting efficient material handling demands in warehousing logistics and smart manufacturing. Hub motors improve equipment efficiency, reduce comprehensive costs and adapt to complex scenarios.
Application
Primarily used in AGVs, AMRs and industrial automation equipment for warehousing logistics and smart manufacturing material handling.
The AGV wheel motor (also known as Hub Servo Motor) is a highly integrated electromechanical drive system that combines core components including planetary gear mechanism, servo motor, brake, encoder, drive controller and wheel assembly into a compact unit. This module adopts a frameless torque motor design to directly drive the wheel motion, replacing the traditional "motor + reducer + wheel" separated solution, and possesses high-precision motion control capabilities. It is primarily applied in AGVs (Automated Guided Vehicles), AMRs (Autonomous Mobile Robots) and industrial automation equipment, meeting efficient material handling demands in warehousing logistics and smart manufacturing. Hub motors improve equipment efficiency, reduce comprehensive costs and adapt to complex scenarios.
Application
Primarily used in AGVs, AMRs and industrial automation equipment for warehousing logistics and smart manufacturing material handling.
