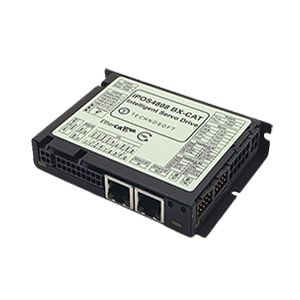

DC servo-drive iPOS4808 BX-CAT
brushlesslinearstepper

DC servo-drive
DC servo-drive
DC servo-drive
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
brushless, linear, stepper
Output signal
digital, RS-232, EtherCAT
Product applications
for brushed DC motors
Voltage
48V, 50 V, 12-36V, 40 V, 42V
Other characteristics
compact, programmable, intelligent
Power

400 W

Current

8 A

Description

• Intelligent, compact and freely programmable motor controller • For brushless, DC brush and step motors • Motor supply / logic supply: 11 – 50 VDC / 12 – 36 VDC • Output current: 8 A continuous; 20 A peak current • Communication via RS232 or EtherCAT • STO inputs with safety integrity level SIL3/Cat3/PLe • Closed-frame design with retractable connectors • Size (L x W x H): 88.5 x 77 x 16.4 mm Product features Programmable and flexible drive controller with integrated output stage, MotionChip ™ controller, I / O signals, EtherCAT interface, STO safety function, and comprehensive support for motor technologies and encoder interfaces. The BX module offers an ideal solution for various applications with critical room conditions. • Electrical characteristics: • Motor supply / logic supply: 11 – 50 VDC / 12 – 36 VDC • Output current: 8 A continuous, 20 A peak current • Motor types: • Brushless DC motors (BLDC, PMSM motors) • Brushed DC motors (DC motors) • Stepper motors (2- or 3-phase) • Voice coil actuators • Linear motors • Feedback options: • 1st Feedback: • Incremental encoder • SinCos 1Vpp • Digital Hall-sensors • Analog Hall-sensors • 2nd Feedback: • Incremental encoder • SSI / BiSS-C • EnDat 2.2 • Control: • Via EtherCAT fieldbus, pulse and direction or analog/digital inputs • Autonomous execution of complex motion sequences stored in the nonvolatile memory of the drive. • Communication: • RS232 - up to 115 Kbit/s
