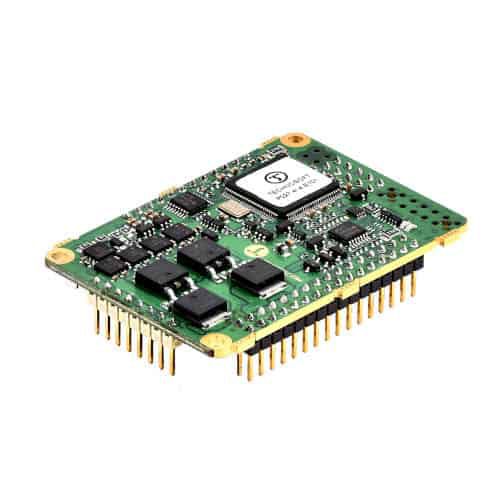

CANopen motor controller iPOS4808 MY-CANtwo-phase stepperthree-phase stepperbrushless
Add to favorites
Compare this product
Characteristics
- Motor type
- two-phase stepper, three-phase stepper, brushless, brushed, for synchronous motor, for servo motors, permanent magnet, linear, two-phase, 3-phase, single-phase, DC
- Input/output
- digital input, analog input, digital output, with integrated I/O, analog output
- Other characteristics
- with speed control, programmable, compact, digital, CANopen, with integrated variable speed control, integrated, 24-48V, with Ethernet interface, universal, single-axis, potentiometer, low-voltage, closed-loop, analog, open-loop, torque control, OEM, smart, cost-effective, 12-48V, RS-232, 4-quadrant, embedded, encoder input
- Input voltage
Max.: 50 V
Min.: 11 V
- Output voltage
Max.: 50 V
Min.: 11 V
- Current
8 A
Max.: 20 A
Min.: 0.01 A
Description
• Intelligent, compact and freely programmable motor controller
• For soldering / plugging in with pin headers with a grid dimension of 2.54 mm
• Size (L x W x H): 60 x 43.6 x 12.4 mm
Product features
Programmable and flexible drive controller with integrated output stage, MotionChip ™ controller, I / O signals, CAN bus interface, and comprehensive support for motor technologies and encoder interfaces. The MY module was specially developed for integration on a carrier board and offers an ideal solution for various applications with critical room conditions.
Motor types:
• Voice coil actuators
• Linear motors
Feedback options:
• 1st Feedback:
• Incremental encoder
• SinCos 1Vpp
• Digital Hall-sensors
• Analog Hall-sensors
• 2nd Feedback:
• Incremental encoder
• SSI / BiSS-C
• EnDat 2.2
