CANopen motor controller iPOS3602 BX-CAN
stepperbrushlessbrushed

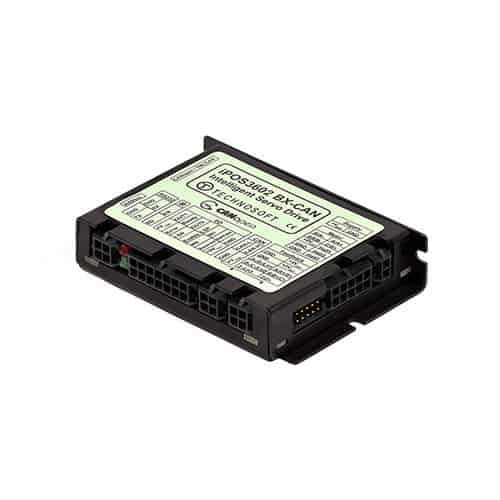

CANopen motor controller - iPOS3602 BX-CAN - Technosoft - stepper / brushless / brushed
CANopen motor controller - iPOS3602 BX-CAN - Technosoft - stepper / brushless / brushed
Add to favorites
Compare this product
Go to the Technosoft website for more information

Characteristics

Motor type
stepper, brushless, brushed, for synchronous motor, permanent magnet, for servo motors, linear, two-phase, three-phase, single-phase, DC
Applications
positioning, for medical devices, for valves
Input/output
digital input, analog input, digital output, with integrated I/O, analog output
Other characteristics
open-loop, programmable, compact, cost-effective, CANopen, closed-loop, integrated, universal, housed, torque control, with integrated variable speed control, encoder input, OEM, single-axis, 4-quadrant, low-voltage, smart, RS-232, potentiometer, embedded
Input voltage

Max.: 36 V

24 V

Min.: 9 V

Output voltage

Max.: 36 V

24 V

Min.: 9 V

Current

Max.: 3.2 A

2 A

Min.: 0.01 A

Description

• Intelligent, compact and freely programmable motor controller • For brushless, DC brush and step motors • Communication via RS232, TMLCAN and CANopen interfaces • Closed-frame design, with retractable connectors • Size (L x W x H): 80 x 55 x 16.3 mm Intelligent control of DC motors, PMSM / BLDC motors and stepper motors with very high integration density. The iPOS3602 BX is a very compact, freely programmable servo controller with an integrated output stage, MotionChip ™ controller, I / O signals and CAN bus interface in one unit. The compact design allows installation even in confined spaces. Motor types: • Brushless DC motors (BLDC, PMSM motors) • Brushed DC motors (DC motors) • Stepper motors (2- or 3-phase) • Voice coil actuators • Linear motors Feedback options: • Incremental encoder • SinCos 1Vpp • Digital Hall-sensors • Analog Hall-sensors Control: • Via CAN Bus, pulse and direction or analog/digital inputs • Autonomous execution of complex motion sequences stored in the nonvolatile memory of the drive.
