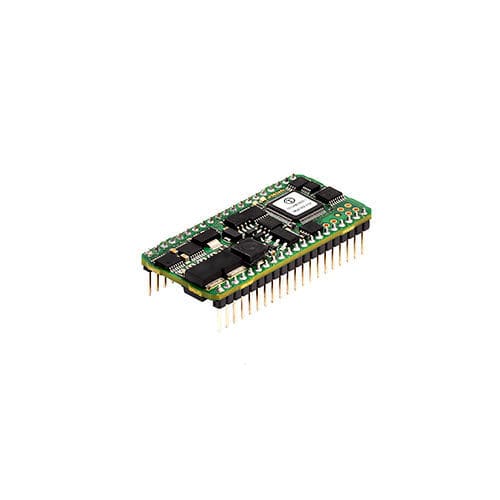

DC servo-drive iPOS3602 MX-CAN
brushlesslinearstepper

DC servo-drive
DC servo-drive
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
brushless, linear, stepper
Output signal
digital, RS-232, EtherCAT, CANopen
Product applications
CAN bus, can
Voltage
9 - 36V
Other characteristics
compact, programmable, miniature, intelligent, smart, plug-in
Power

75 W

Current

2 A

Description

• Intelligent, compact and freely programmable motor controller • For brushless, DC brush and step motors • Motor supply / logic supply: 9 – 36 VDC • Output current: 2 A continuous; 3.2 A peak current • Communication via RS232, CAN/CANopen (standard) or EtherCAT (optional) • For soldering / plugging in with pin headers with a pitch of 2.54 mm • Size (L x W x H): 55 x 26.4 x 13.1 mm Intelligent control of DC motors, PMSM / BLDC motors and stepper motors with very high integration density. The iPOS3602 is a very compact, freely programmable servo controller with an integrated output stage, MotionChip ™ controller, I / O signals and CAN bus interface in one unit. The iPOS3602 MX is designed as a module for soldering / plugging into a carrier board and offers an ideal solution for various applications with critical room conditions. The extremely compact design offers easy integration in the smallest of spaces. • Electrical characteristics: • Supply voltage for logic / power: 9 - 36 VDC • Output current: 2 A continuous, 3.2 A peak current • Motor types: • Brushless DC motors (BLDC, PMSM motors) • Brushed DC motors (DC motors) • Stepper motors (2- or 3-phase) • Voice coil actuators • Linear motors • Feedback options: • Incremental encoder • SinCos 1Vpp • Absolute encoders (optional) • Digital Hall-sensors • Analog Hall-sensors • Control: • Via CAN Bus, pulse and direction or analog/digital inputs • Autonomous execution of complex motion sequences stored in the nonvolatile memory of the drive.
