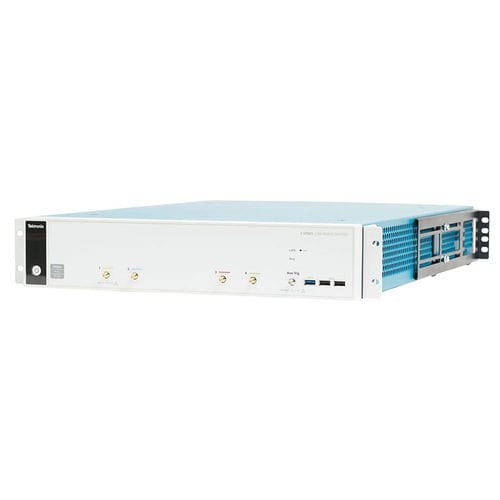

Up to 25 GS/s digitizer-oscilloscope 6 series

4-channelRF12-bit

Applications requiring high-speed digitizers shouldn’t trade-off performance when turning on channels. The 6 Series Low Profile Digitizer sets a new standard by not interleaving sample rate, bandwidth or record length. You get the fastest and most accurate performance from your digitizer – all in a 2U space. Up to 2 GHz RF DDC bandwidth on all channels 2U rack ready digitizer Best in class low noise and ENOB Big Physics – Machine Diagnostics Physics is constantly leading the world to exciting new scientific discoveries in both matter and energy. These experiments require digitizers and oscilloscopes with new levels of precision, performance and size when monitoring target test points. The 6 Series Low Profile Digitizer exceed these by bringing an award winning oscilloscope user interface, industry leading performance, small form factor and Tektronix’s class of reliability. Test equipment just got better. High Energy (Particle) Physics Nuclear Physics Atomic, Molecular and Optical Physics Condensed Matter Built-in Spectrum View inputs with DDC & IQ data offload Whether you’re a spectrum analyzer expert or an occasional user, you’ll be able to put the built-in Spectrum View right to work. The Tektronix TEK049 ASIC has patented dual signal paths with an ADC and DDC that allow independent controls of both time domain and frequency domain. Highlights Up to 2 GHz bandwidth with Digital Down Converter (DDC) Individual time domain and frequency domain controls Fast raw IQ data offloading to PC RF vs Time Triggering (trigger on frequency or magnitude changes)
