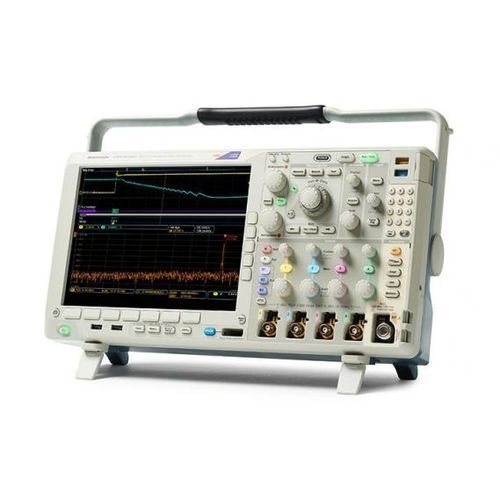

Digital oscilloscope MDO4000C

analogportablebench-top

The most powerful mixed domain oscilloscope, the MDO4000 combines up to six instruments including options like a function generator and a built-in spectrum analyzer. Unlike any other instrument, it can synchronize RF, analog and digital channels – giving unprecedented insight into your design. More than just a powerful scope Engineering designs today are a complex mix of processors, serial buses, and wireless interfaces. At the core of the MDO4000C is a reputable Tektronix oscilloscope paired with an expandable platform. Customize it to your testing needs. Add 16 logic channels, a 50 MHz arbitrary/function generator, protocol analysis, and an integrated true hardware 3 or 6 GHz spectrum analyzer to help tackle complex designs challenges. Highlights •Integrated triggered acquisition system - over 125 trigger combinations in the time AND frequency domains •20 Mpoint record length with Wave Inspector® controls •True spectrum analyzer hardware enables real spectrum analysis •Expandable functionality ensures usefulness well into the future Accurate Measurements Matter Put simply, the MDO Series scopes are designed to make the most accurate measurements in the industry – providing an unrivaled view into your designs. The MDO4000C takes measurements on actual acquisition data, while many other instruments only offer a snapshot view by taking measurements on display data. It doesn’t end there. We guarantee more specifications than many of our competitors, ensuring the MDO4000C will give you total confidence in your measurements. After all, measurement accuracy impacts design integrity.
