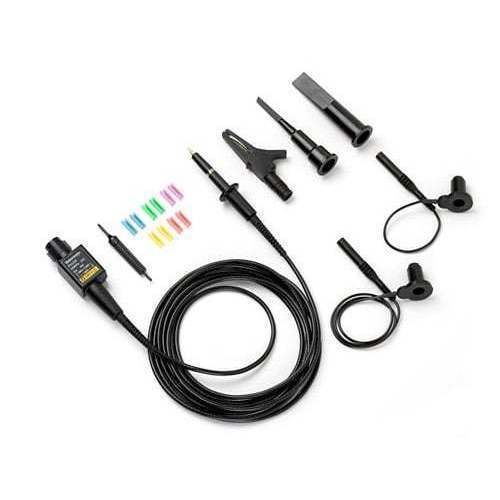

Electric test probe P5122

high-frequency

Overview
A high voltage single-ended probe is typically used for measuring ground referenced signals up to 40 kV. However, some single-ended probes are designed for oscilloscopes with isolated or floating inputs for measurements that are not ground referenced. Users should select probes with a low input capacitance specification (< 4 pF) to minimize the probe’s loading effect on the circuit because a probe with lower input capacitance will offer higher input impedance at higher frequencies.

Tektronix High Voltage Probe solutions offer:

• Best-in-class bandwidth up to 800 MHz
• Best-in-class probe loading with input capacitance as low as 1.8 pF
• The only products with 3rd Party Safety Certification (UL, CSA, ETL)
• Most extensive set of probe accessories

Models (table)
Model | Bandwidth | Input Impedance | Maximum Voltage | List Price
P5122 | 200 MHz | 100 MΩ || 4 pF | RMS: 1000 V CAT II | £488
P5100A | 500 MHz | 40 MΩ || 2.5 pF | Peak: 2.5 kV; RMS: 1000 V CAT II | £845
TPP0850 | 800 MHz | 40 MΩ || 1.8 pF | Peak: 2.5 kV; RMS: 1000 V CAT II | £1,330
P6015A | 75 MHz | 100 MΩ || 3 pF | Peak: 40 kV; RMS: 15 kV DC | £3,710

Available technical resources (listed on page)

• Passive High Voltage Probes — Datasheet (overview of features, important specifications, ordering information)
• Probe Selection Guide — Product selector
• ABCs of Probes Primer — Whitepaper (fundamentals of probes and selection guidance)
• P6015A Instruction Manual; TPP0850 User Manual; TPH1000 Probe Holder Instructions; additional manuals and FAQs

Characteristics / Technical specifications

• Brand: Tektronix
• Series / Denomination: High Voltage Probe: Single-Ended
• Recommended input capacitance for minimal loading: < 4 pF
• Lowest input capacitance offered: 1.8 pF
• Maximum advertised bandwidth (series): up to 800 MHz
• Safety: 3rd Party Safety Certification available (UL, CSA, ETL)
• Example SKUs and key specs: P5122 — 200 MHz; 100 MΩ || 4 pF; RMS 1000 V CAT II; P5100A — 500 MHz; 40 MΩ || 2.5 pF; Peak 2.5 kV; TPP0850 — 800 MHz; 40 MΩ || 1.8 pF; P6015A — 75 MHz; 100 MΩ || 3 pF; Peak 40 kV, RMS 15 kV DC
• List prices shown on page (GBP): P5122 £488; P5100A £845; TPP0850 £1,330; P6015A £3,710
