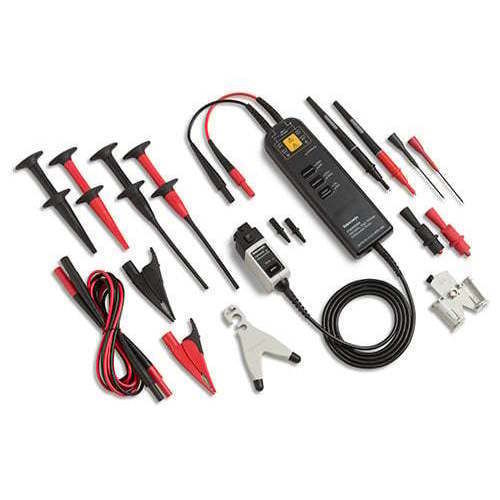

Electric test probe P5200A

high-frequency

Overview
A high voltage differential probe measures the voltage difference between two points when neither point is at ground potential. Tektronix high voltage differential probes support measurements on floating or isolated circuits and are available for signal levels up to ±6000 V on selected models. These probes are engineered for strong common-mode rejection to enable accurate non-ground-referenced measurements.

Tektronix high voltage differential probe solutions offer:

• Best-in-class bandwidth and low probe loading for precise signal capture
• Third-party safety certifications on selected models (UL, CSA, ETL)
• Wide range of attenuation and voltage ratings to match dynamic range requirements
• Extensive set of probe accessories and adapters for oscilloscope compatibility

Models and key specifications

• P5200A — Attenuation: 50X / 500X — Bandwidth: 50 MHz — Input Impedance: 10 MΩ || 2 pF — Maximum Voltage: 500X: ±1300 V; 50X: ±130 V — List Price: £1,630
• P5202A — Attenuation: 20X / 200X — Bandwidth: 100 MHz — Input Impedance: 5 MΩ || 2 pF — Maximum Voltage: 200X: ±640 V; 20X: ±64 V — List Price: £2,490
• P5205A — Attenuation: 50X / 500X — Bandwidth: 100 MHz — Input Impedance: 10 MΩ || 2 pF — Maximum Voltage: 500X: ±1300 V; 50X: ±130 V — List Price: £2,490
• THDP0200 — Attenuation: 50X / 500X — Bandwidth: 200 MHz — Input Impedance: 10 MΩ || 2 pF — Maximum Voltage: 500X: ±1500 V; 50X: ±150 V — List Price: £2,940
• TMDP0200 — Attenuation: 25X / 250X — Bandwidth: 200 MHz — Input Impedance: 5 MΩ || 2 pF — Maximum Voltage: 250X: ±750 V; 25X: ±75 V — List Price: £3,010
• THDP0100 — Attenuation: 100X / 1000X — Bandwidth: 100 MHz — Input Impedance: 40 MΩ || 2.5 pF — Maximum Voltage: 1000X: ±6000 V; 100X: ±600 V — List Price: £4,980
• P5210A — Attenuation: 100X / 1000X — Bandwidth: 50 MHz — Input Impedance: 40 MΩ || 2.5 pF — Maximum Voltage: 1000X: ±5600 V; 100X: ±560 V — List Price: £5,020
• TDP0500 — Attenuation: 5X / 50X — Bandwidth: 500 MHz — Input Impedance: 1 MΩ || ≤ 1 pF — Maximum Voltage: 50X: ±42 V; 5X: ±4.2 V — List Price: £5,730
• TDP1000 — Attenuation: 5X / 50X — Bandwidth: 1 GHz — Input Impedance: 1 MΩ || ≤ 1 pF — Maximum Voltage: 50X: ±42 V; 5X: ±4.2 V — List Price: £6,470
• P6251 — Attenuation: 5X / 50X — Bandwidth: 1 GHz — Input Impedance: 1 MΩ || ≤ 1 pF — Maximum Voltage: 50X: ±42 V; 5X: ±4.2 V — List Price: £8,740

Compatible instruments & notes
Many models require adapters or specific oscilloscope interfaces (examples: TCA-1MEG, TPA-BNC, TekVPI® external power supply, TCA-VPI50, TPA-N-VPI). Verify model-specific compatibility and adapter requirements when configuring with an oscilloscope.

Technical specifications

• Manufacturer: Tektronix
• Series: High Voltage Differential Probes
• Use case: Differential measurements where neither node is at ground; floating/isolated measurements
• Maximum measurable signals: up to ±6000 V on select models (e.g., THDP0100 at 1000X)
• Bandwidth range: 50 MHz to 1 GHz across the series
• Attenuation options: common pairs include 5X/50X, 20X/200X, 25X/250X, 50X/500X, 100X/1000X
• Input impedance options: 40 MΩ, 10 MΩ, 5 MΩ, 1 MΩ (parallel capacitance per model shown above)
• Safety & common-mode handling: designed for non-ground-referenced measurements; selected models hold third-party safety certifications (UL, CSA, ETL)
• Price range (listed examples): approximately £1,630 to £8,740 (model-dependent)
