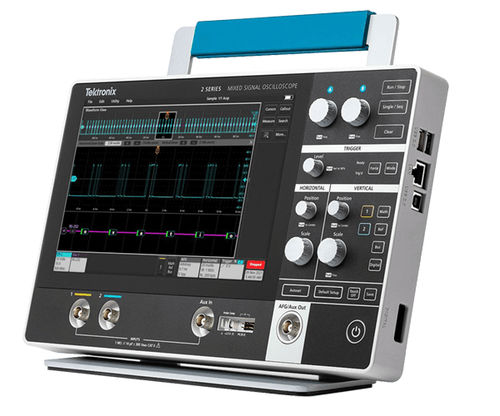

Mixed-signal oscilloscope 2 series

analogportablebench-top

Unlock more space on your bench without compromising performance by choosing our most compact and handheld portable oscilloscope. At only 1.5 inches thick and less than 4 pounds, the 2 Series MSO feels like a tablet while offering the full-featured functionality of a realtime touchscreen oscilloscope. On the benchtop, in the classroom, or to the field, take it wherever your measurement challenges take you. For those seeking the convenience of a portable oscilloscope, the 2 Series MSO delivers unmatched performance. It's small enough to fit into a laptop bag but offers robust specifications, including bandwidths up to 500 MHz and a maximum sample rate of 2.5 GS/s, with options for 2 or 4 analog channels. The front and side I/O ports provide easy access and connectivity. Additionally, the optional detachable battery pack offers versatility for bench or field use. Simple touchscreen interface and controls The 2 Series MSO offers the same award-winning touchscreen user interface and simplified control panel you’ve come to expect on the most advanced Tektronix oscilloscopes. Simplified front panel with only the most critical controls Colored LED ring lights around the knobs indicate active sources or parameters to adjust Colored LED light under buttons indicate status Comprehensive debug with one instrument With several integrated options, the 2 Series MSO is equipped for all your debugging needs in just one instrument. Built-in 16 MSO channels for testing digital circuits (2-MSO instrument option) Analyze the frequency response of a system with the built-in Bode plot feature (2-SOURCE software option)
