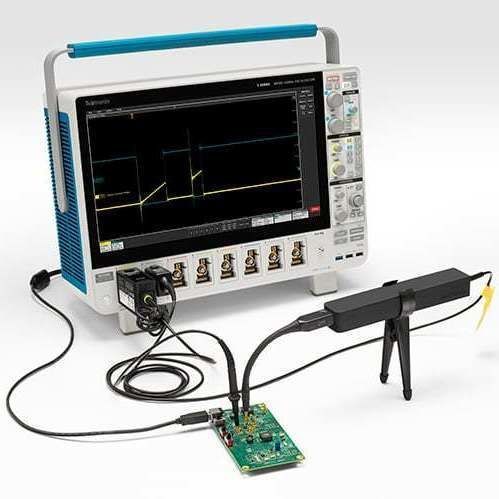

Current probe TICP Series

for oscilloscopesbroadband

Overview
Make accurate shunt-based dynamic current measurements with the TICP series isolated current probes. High bandwidth options, flexible differential ranges, full galvanic and RF isolation, and very low noise enable precise measurements on floating shunts and current viewing resistors (CVRs) in power electronics.

Key benefits

• Measure DC to hundreds of MHz when paired with high-performance shunts or CVRs.
• RF isolation between the probe tip and oscilloscope eliminates ground loops and reduces common-mode noise.
• Low attenuation and 50 Ω input impedance deliver minimal measurement noise contribution.
• Seamless TekVPI™ integration with Tektronix 4, 5 and 6 Series MSO oscilloscopes for probe detection, power and scope-based parameter adjustment.

Applications
Optimized for high-side and floating shunt measurements in power electronics, including SiC and GaN power converters, high-side FET switching analysis, low-power IoT/mobile device current profiling, and double-pulse switching loss measurements.

Features (short)

• Bandwidth options: 250 MHz (TICP025), 500 MHz (TICP050), 1 GHz (TICP100).
• Common-mode voltage rating up to 1.8 kV (pollution degree 1); safety rating 1000 V CAT II.
• Noise contribution < 4.7 nV/√Hz (<150 µV RMS at 1 GHz).
• High CMRR: up to 140 dB at DC; ~90 dB at 1 MHz (1x tip).
• Shielded, high-bandwidth MMCX tip connectors; adapters available for SMA/BNC and 25 mil square pins; bipod/tripod adapters included.

Models (series table)
Model | Bandwidth | Differential Voltage (tips) | Common Mode Voltage | Common Mode Rejection Ratio | List Price
TICP025 | 250 MHz | ±0.5 V (1x), ±5 V (10x), ±50 V (100x) | 1.8 kV (pollution degree 1); 1000 V CAT II | 140 dB at DC; 90 dB at 1 MHz (1x Tip) | 10.200,00 €
TICP050 | 500 MHz | ±0.5 V (1x), ±5 V (10x), ±50 V (100x) | 1.8 kV (pollution degree 1); 1000 V CAT II | 140 dB at DC; 90 dB at 1 MHz (1x Tip) | 12.300,00 €
TICP100 | 1 GHz | ±0.5 V (1x), ±5 V (10x), ±50 V (100x) | 1.8 kV (pollution degree 1); 1000 V CAT II | 140 dB at DC; 90 dB at 1 MHz (1x Tip) | 14.500,00 €

Compatibility / Supported instruments
Fully compatible with Tektronix MSO Series 4, 5 and 6 oscilloscopes (including B and Low Profile variants) using the TekVPI™ probe interface for power and auto-detection.

Resources
Datasheet and user manual available for the TICP series (see Tektronix product resources).

Technical specifications

• Series name: TICP (IsoVu™ Isolated Current Probes)
• Bandwidth: 250 MHz, 500 MHz, 1 GHz
• Common mode voltage: up to 1.8 kV (pollution degree 1)
• Safety rating: 1000 V CAT II
• Noise contribution: <4.7 nV/√Hz (<150 µV RMS at 1 GHz)
• Common mode rejection: up to 140 dB at DC; ~90 dB at 1 MHz (with 1x tip)
• Differential voltage (tip selection): ±0.5 V (1x), ±5 V (10x), ±50 V (100x)
• Input impedance: 50 Ω
• Tip connector: shielded MMCX; adapters available for SMA/BNC and square-pin (25 mil) connections
• Included accessories: bipod and tripod adapters; various adapter and lead options (square pin to MMCX, MMCX to IC grabber, MicroCKT grabbers, 100X sensor tip cable TICPMM100)
• Integration: TekVPI™ probe interface for power and auto-detection on supported MSO scopes
• Typical use cases: shunt-based high-bandwidth current measurement, high-side switching analysis, low-level dynamic current measurement in low-power designs
