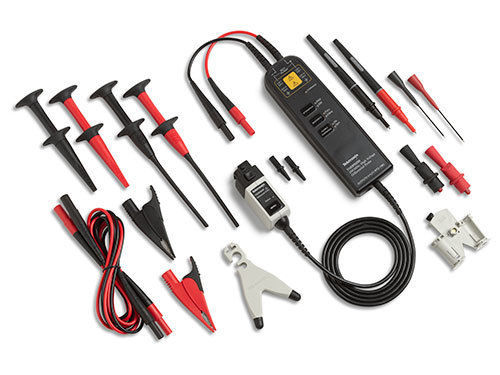

Active probe THDP0400

voltagehigh-voltagefloating potential

Overview
A high-voltage differential probe measures the voltage difference between two points when neither is at ground. Tektronix high-voltage differential probes support floating, isolated and non-ground-referenced measurements with strong common-mode rejection and model-dependent maximums up to ±6000 V.

Tektronix High Voltage Differential Probe solutions offer

• Best-in-class bandwidth and optimized probe loading for oscilloscope inputs
• Third-party safety certifications (UL, CSA, ETL) for applicable models
• Range of high- and medium-voltage models to match dynamic range and resolution needs
• Extensive accessory ecosystem for adapter and power supply compatibility

Models (series listing)
P5200A | 50X / 500X | 50 MHz | 10 MΩ || 2 pF | 500X: ±1300 V; 50X: ±130 V | 1.870,00 €
P5202A | 20X / 200X | 100 MHz | 5 MΩ || 2 pF | 200X: ±640 V; 20X: ±64 V | 2.860,00 €
P5205A | 50X / 500X | 100 MHz | 10 MΩ || 2 pF | 500X: ±1300 V; 50X: ±130 V | 2.860,00 €
THDP0200 | 50X / 500X | 200 MHz | 10 MΩ || 2 pF | 500X: ±1500 V; 50X: ±150 V | 3.380,00 €
TMDP0200 | 25X / 250X | 200 MHz | 5 MΩ || 2 pF | 250X: ±750 V; 25X: ±75 V | 3.460,00 €
THDP0100 | 100X / 1000X | 100 MHz | 40 MΩ || 2.5 pF | 1000X: ±6000 V; 100X: ±600 V | 5.730,00 €
P5210A | 100X / 1000X | 50 MHz | 40 MΩ || 2.5 pF | 1000X: ±5600 V; 100X: ±560 V | 5.770,00 €
TDP0500 | 5X / 50X | 500 MHz | 1 MΩ || ≤ 1 pF | 50X: ±42 V; 5X: ±4.2 V | 6.580,00 €
TDP1000 | 5X / 50X | 1 GHz | 1 MΩ || ≤ 1 pF | 50X: ±42 V; 5X: ±4.2 V | 7.440,00 €
THDP0400 | 50X / 500X | 400 MHz | 10 MΩ || 2.5 pF | 500X: ±2000 V; 50X: ±200 V | 8.350,00 €
P6251 | 5X / 50X | 1 GHz | 1 MΩ || ≤ 1 pF | 50X: ±42 V; 5X: ±4.2 V | 10.000,00 €

Notes on compatibility and accessories (extracted)

• Certain probe models require adapters or external power supplies for specific oscilloscope families; adapter and TekVPI® external power supply requirements vary by oscilloscope model.
• High-frequency models may vary input impedance and input capacitance to optimize signal fidelity for particular oscilloscope inputs.

Technical specifications / Key characteristics

• Intended use: differential measurements where neither test point is at ground; floating or isolated measurements.
• Maximum signal capability: up to ±6000 V (model-dependent; see model listing).
• Bandwidth range across series: 50 MHz to 1 GHz depending on model.
• Attenuation options across series: examples include 5X/50X, 20X/200X, 25X/250X, 50X/500X, 100X/1000X.
• Input impedance examples: 1 MΩ (≤ 1 pF) for highest-bandwidth models; 5 MΩ or 10 MΩ (≈ 2 pF) for many medium-bandwidth models; up to 40 MΩ (≈ 2.5 pF) for very high-voltage models.
• Safety: third-party safety certifications available for applicable models.
• Accessories: broad set of probe accessories for oscilloscope interface, adapters and powering options.
