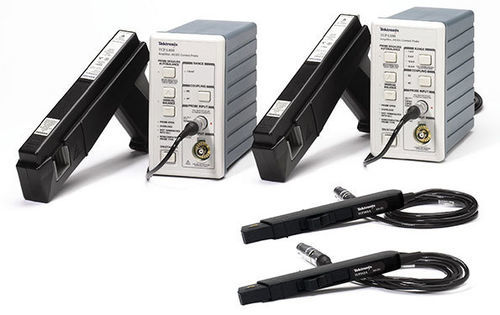

Current probe A622

automaticmeasurement

Overview
Tektronix current probe solutions provide a wide portfolio of AC/DC and AC-only probes for power and load analysis. Measurement ranges cover from microamp sensitivity to multi‑kiloamp models, with model-dependent bandwidth and rise-time performance. When paired with Tektronix oscilloscopes, many probes support automatic readout and scaling to simplify volts→amps conversion.

Highlights

• Broad selection of AC/DC and AC-only current probes
• Measurement capability from µA sensitivity up to 3,000 A (model dependent)
• Bandwidth options up to 2 GHz for high-frequency applications
• High clamp sensitivity down to ~1 mA on selected models
• Selected products carry third‑party safety certifications (UL, CSA, ETL)
• Models with bare‑wire voltage ratings and dedicated high‑current clamps available
• Automatic readout and scaling with Tektronix oscilloscopes where supported

Available models and key specs
Model | Maximum Current | Minimum Current | Bandwidth | Rise Time | Indicative price
A622 | DC: 100 A; Max RMS: 71 A; Peak: 100 A | 50 mA | 100 kHz | - | ¥ 197,000
A621 | RMS: 1000 A; Peak: 2000 A | 10 mA | 50 kHz | - | ¥ 197,000
CT2 | Peak: 36 A; Max RMS: 2.5 A continuous | 1 mA | 200 MHz | < 500 ps | ¥ 208,000
CT1 | Peak: 12 A; Max RMS: 450 mA continuous | 200 μA | 1 GHz | < 350 ps | ¥ 209,000
CT6 | Peak: 6 A; Max RMS: 120 mA continuous | 200 μA | 2 GHz | < 200 ps | ¥ 220,000
TRCP0300 | 300 A max | 250 mA min | 30 MHz | - | ¥ 450,000
TCP305A | DC: 50 A; Max RMS: 35.4 A; Peak: 50 A | 5 mA | 50 MHz | < 7 ns | ¥ 459,000
TRCP3000 | 3000 A max | 500 mA min | 16 MHz | - | ¥ 476,000
P6021A | Max RMS: 10.6 A; Peak: 250 A | 10 mA | 60 MHz | < 5.8 ns | ¥ 490,000
P6022 | Max RMS: 4 A; Peak: 100 A | 1 mA | 120 MHz | < 2.9 ns | ¥ 560,000
TCPA300 / TCPA400 (amplifiers) | Probe dependent | - | up to 100 MHz (amplifier dependent) | - | ¥ 669,000–¥ 677,000

Notes on usage and compatibility
Many probes require specific amplifiers, adapters, or terminations (for example TCPA series amplifiers, TCA/TCA‑BNC adapters, 50 Ω feed‑through part #011‑0049‑0X, TekProbe cables) to interface with certain oscilloscope families. Compatibility and necessary accessories are model dependent and listed per model in technical datasheets.

Technical specifications

• Brand: Tektronix
• Product family: Current Probe
• Measurement range: from µA sensitivity up to multi‑kiloamp models (e.g., up to 3,000 A on TRCP3000)
• Bandwidth: model dependent, up to 2 GHz on selected CT models
• Sensitivity: down to ~200 μA–1 mA on selected probes
• Rise time: from sub‑100 ps to several ns depending on model
• Safety: selected models certified by UL / CSA / ETL where indicated
• Automatic readout/scaling supported with compatible Tektronix oscilloscopes
