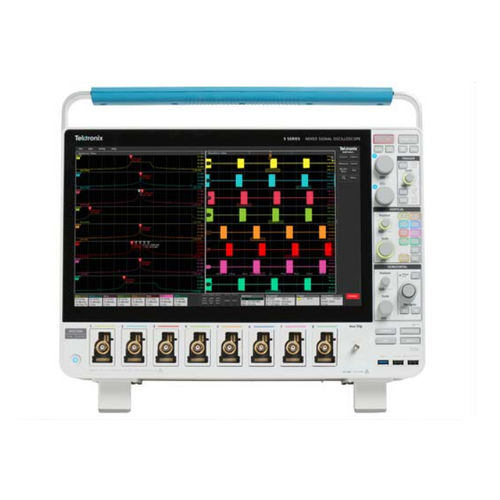

Mixed-signal oscilloscope 5 series

bench-topmulti-channelUSB

Get a complete view of your design with high-fidelity waveforms, insightful measurements, unique spectrum analysis, and flexible probing. Experience the intuitive user interface appreciated by engineers everywhere. Get to know the 5 Series B 8 Channel Oscilloscope Performance for today and tomorrow Intuitive controls Insightful measurements and analysis Multi-channel spectrum analysis with the 4, 5 or 6 Series MSOs Insightful measurements See signal details with high-resolution 12-bit analog-to-digital converters. Change your point of view whenever you wish with multi-channel spectrum analysis, measurement statistics, tables and trend plots. 12-bit resolution at 1.25 GHz; 16-bit resolution at 50 MHz Built-in DDCs enable multi-channel, synchronized spectrum analysis Results tables, measurement statistics, histograms, and trend plot views Advanced solutions The 5 Series adapts to suit your needs with a wide range of application-specific measurements. Add advanced analysis software options or bundles for your workflow. Support for over 25 serial protocols covering the most common interfaces Advanced single-phase and three-phase power analysis packages Measurement tools for signal integrity and power integrity Optional Windows® operating system lets you run PC software More ways to see more signals Versatile inputs and advanced probing technology let you see more. Up to 8 FlexChannel™ inputs for up to 8 analog or 64 digital signals, plus an external trigger input Includes 500 MHz or 1 GHz probes with just 3.9 pF input capacitance TekVPI probe interface supports a wide range of active, differential, isolated and current probes
