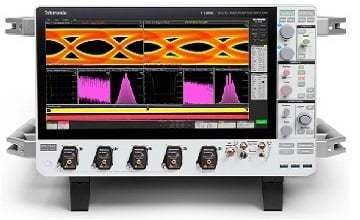

Digital oscilloscope DPO714AX

analoganalog-digitalmixed-signal

Overview
The 7 Series DPO delivers high signal fidelity, high ENOB, low noise, low jitter, fast measurement throughput, and the TekScope® user interface, making it ideal for high-speed serial, high-energy physics, and RF applications. Bandwidths range from 8–25 GHz and the series is compatible with TekConnect™ probes.

Key Product Highlights

• Intuitive TekScope user interface minimizes learning curve
• Lowest noise and high Effective Number of Bits (ENOB) for improved measurement margins
• Advanced DSP algorithms and Tek79 10-bit ADC for accurate capture
• Fast and precise jitter and eye analysis
• 10x faster data transfers with TekHSI and 10 Gbps SFP+

Low Noise, High ENOB
Superior measurement accuracy and sensitivity are enabled by the Tek85 low-noise preamp, Tek79 10-bit ADC and advanced DSP algorithms for accurate capture of low-amplitude signals.

• Noise examples: 523 µV at 8 GHz (0.10% FS) to 1.13 mV at 25 GHz (0.23% FS), 500 mV full scale
• ENOB: ~7.5 bits at 8 GHz to ~6.5 bits at 25 GHz (125 GS/s, 500 mV FS, signal 90% FS)
• QuietChannel™ Technology uses active CTLE to compensate channel loss and reduce signal-path noise
• Automatic Signal Path Compensation (SPC) adjusts internal gain, offset and frequency response for optimal accuracy

Minimize Test Times with 10x Throughput
Built-in 10 Gbps SFP+ port and TekHSI™ enable much faster transfer of large waveform datasets to a PC for parallel acquisition and analysis. TekHSI uses a gRPC low-latency framework with C# and Python libraries and TekScope PC software.

User Interface and Operation
15.6-inch 1080p display with a touch-optimized TekScope UI providing quick navigation, multi-touch gestures, and one-button Jitter Measurement Summary. Supports embedded or Windows OS on a removable SSD.

Applications

• Advanced research: high-energy physics, particle accelerators, astrophysics, plasma/fusion research (125 GS/s, deep record lengths up to 2G)
• High-speed serial compliance testing and debug: automated compliance software for PCIe, USB, Thunderbolt, DisplayPort, HDMI, DDR, MIPI (options available)
• Wideband RF systems: multi-channel Vector Signal Analysis with SignalVu‑PC for EW, SIGINT, 5G/mmWave, UWB and RF pulse analysis

Models (table)
Model | Analog Bandwidth | Sample Rate | Record Length | Analog Channels | List Price
DPO714AX | 8 GHz – 25 GHz | 125 GS/s | Up to 2G points | 4 | US $176,000

Available Upgrades and Options

• Software and function licenses: 7-LNX-UP (removable SSD with embedded OS), 7-WIN-UP (Windows on removable SSD), 7-RL-1 / 7-RL-2 (extend record length to 1G/2G), 7-SIM-UP (Signal Integrity Modeling), Opt. 7-FRQCNT (Frequency Counter-Timer)
• Bandwidth upgrade: 7-BWAX4 (Bandwidth Upgrade for 7 Series DPO714AX)
• Probe compatibility: TekConnect™ and TriMode probes (P7708, P7713, P7716, P7720, P7625, P7633)

Documents and Resources
Datasheet and manuals available; comparison PDF: https://download.tek.com/document/Tektronix%20Performance%20Scope%20Comparison_85W-74190-0.pdf

Characteristics / Technical Specifications

• Series / Product name: 7 Series DPO Digital Phosphor Oscilloscope
• Manufacturer (brand): Tektronix
• Model / SKU: DPO714AX
• Analog bandwidth: 8 GHz – 25 GHz (model/options dependent)
• Maximum sample rate: 125 GS/s
• Record length: Up to 2G points
• Analog channels: 4
• Vertical resolution: 10 bits (ADC)
• ENOB: ~7.5 bits at 8 GHz to ~6.5 bits at 25 GHz (specified conditions)
• Noise performance: 523 µV at 8 GHz to 1.13 mV at 25 GHz (500 mV full scale)
• Signal path tech: Tek85 preamp, Tek79 10-bit ADC, QuietChannel™ Technology, automatic SPC
• High-speed interface: 10 Gbps SFP+ port and TekHSI™ (gRPC-based)
• Display: 15.6-inch, 1080p, multi-touch touchscreen
• Storage: Removable SSD (embedded OS or Windows via optional license)
• Probe interface: TekConnect™; supports TriMode probes
• Typical use cases: high-speed serial debug/compliance, advanced research, wideband RF analysis, jitter and eye-diagram analysis
