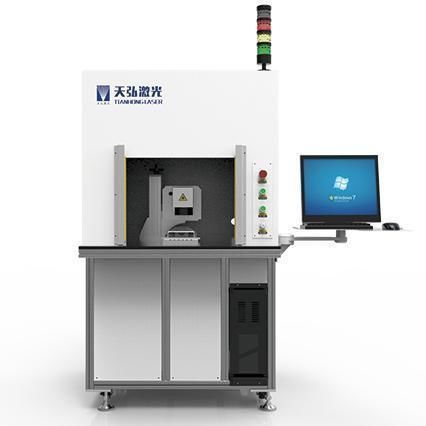

Cable stripping machine TH series

for electrical cableswirefor electrical wire

Description
CO2 laser wire stripping machines remove non-metallic outer layers and insulating inner layers, while fiber laser variants strip metal shielding layers. Available in CO2 and fiber configurations to match specific cable constructions and production requirements.

Features

• Dual optical path design enabling simultaneous up/down diagonal operation for efficient multi-angle stripping.
• Table timing-belt transmission combined with synchronised laser power and feed speed for high throughput.
• Software control with adjustable speed and process parameters to ensure consistent peeling results.
• Designed for the electronic cable industry: compact layout, high reliability, flexible operation and production-oriented controls.
• Customizable equipment options to meet specific application requirements and improve process efficiency.

Technical specifications

• Commodity name: Laser Wire Stripping (peeling) Machine
• Commodity ID: 1475857055703781376
• Device model: TH-CO2LPS30/60/100 (CO2); TH-FLPS20/30/50 (fiber)
• Laser type: CO2 (for TH-CO2LPS) and fiber (for TH-FLPS)
• Laser power: CO2: 30/60/100 W; Fiber: 50/100 W
• Input power: 1200 W
• Laser wavelength: CO2: 10.6 µm; Fiber: 1064 nm
• Laser energy adjustment: 10–100%
• Positioning accuracy: ±0.01 mm
