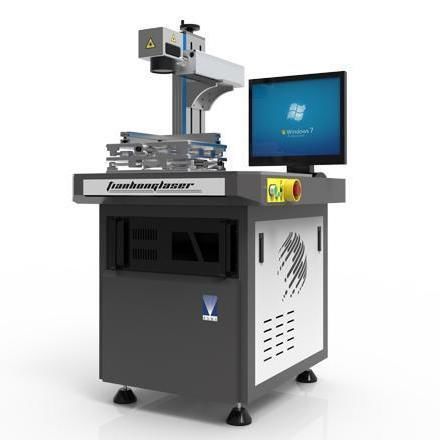

Fiber laser marking machine TH-FLMS series

MOPA laserpapermetal

Product description
The TH-FLMS fiber laser marking machines are designed for high-precision, high-speed marking and coding of plastics, electronic components, chips, colored paper and food packaging. Suitable for applications requiring fine detail and depth control such as watches, molds and bitmap marking; also applicable for surface oxidation on aluminum-magnesium alloys.

Features

• Compatible with IPG, SPI, Raycus and other fiber laser sources; reflection isolation protection and high peak output power with mean time between failures up to 100,000 hours.
• Compact footprint for inline integration into production lines; high working frequency to increase marking throughput.
• Full computer control with intuitive interface; supports common formats for simple import of patterns and data.
• Single-mode output and fine spot size for precise, high-resolution marking.
• Typical application areas: plastic key/button marking, online marking of electronic devices and chips, laser coding of colored paper and food packaging, watch and clock components, mold industry and bitmap marking.

Sample display
Provided samples illustrate typical marking quality and achievable detail levels for different materials and parameters.

Specifications (table)
model: TH-FLMS20 | TH-FLMS30 | TH-FLMS50 | TH-FLMS100 | TH-FLMS200 | TH-FLMSMP20 | TH-FLMSMP30 | TH-FLMSMP60
wavelength: 1064nm
laser: fiber-optic laser (standard models) | MOPA laser (MP models)
laser power: 20W | 30W | 50W | 100W | 200W | 20W | 30W | 50W
cooling method: air cooled
marking range: 100x100mm (optional)
repeatability: ±0.003mm
line width lower limit: 0.045mm
single point energy: 1.5mJ
beam quality: ≤1.2 (fiber-optic) | ≤1.3 (some MOPA) | ≤1.5 (MP high-power)
pulse width: 100ns (fiber-optic) | 2–350ns (MOPA)
pulse repetition frequency: 20–200kHz (fiber) | 1–4000kHz (MOPA)
engraving speed: ≤7000mm/s
degree of protection: IP54

Technical specifications

• Commodity name: Fiber Laser Marking Machine
• Commodity ID: 1475857059197636608
• Model family: TH-FLMS series (includes TH-FLMS20 / 30 / 50 / 100 / 200 and TH-FLMSMP variants)
• Wavelength: 1064 nm
• Laser types: fiber-optic laser (standard) and MOPA laser (MP variants)
• Available laser powers: 20W, 30W, 50W, 100W, 200W (model-dependent)
• Cooling: air cooled
• Standard marking area: 100 x 100 mm (optional)
• Positioning repeatability: ±0.003 mm
• Minimum line width: 0.045 mm
• Single point energy: 1.5 mJ
• Beam quality (M2): ≤ 1.2 / ≤ 1.3 / ≤ 1.5 depending on model
• Pulse width: 100 ns (fiber) or 2–350 ns (MOPA)
• Pulse repetition frequency: 20–200 kHz (fiber) or 1–4000 kHz (MOPA)
• Maximum engraving speed: ≤ 7000 mm/s
• Protection rating: IP54
