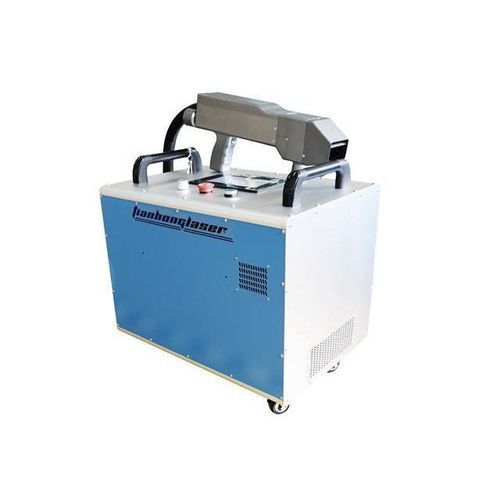

Fiber laser cleaning machine TH-LC series

automaticmanualautomotive

Product description
The TH-LC series laser cleaning machines are designed for surface cleaning and decontamination in industrial environments, including mold production, automotive manufacturing, shipbuilding, food processing, wastewater treatment, rubber and petrochemical industries. Typical applications include rust removal, paint and coating stripping, oil and contaminant removal, welding surface and spray pretreatment, stone and sculpture cleaning, and rubber mold residue removal.

Features

• Portable and movable design; no disassembly required for on-site cleaning
• Precise, adjustable cleaning width and energy output
• Non-contact process with minimal substrate damage
• No chemical solvents required — safe and environmentally friendly
• Stable laser system with low maintenance requirements
• No consumables; ready to operate after power-up
• High cleaning efficiency to reduce processing time
• Can be used handheld or integrated with a robotic arm for automated cleaning

Specifications
Device model: TH-LC-100D-A | TH-LC-200D-A | TH-LC-300D-A | TH-LC-500D-A
Laser power: 100W | 200W | 300W | 500W
Laser type: Fiber-optic laser
Laser wavelength: 1064 nm
Cooling method: Air cooling / Water cooling
Recommended water temperature: 18–25°C
Cabinet dimensions: 575 × 400 × 500 mm | 610 × 500 × 700 mm | 640 × 540 × 730 mm | 850 × 830 × 960 mm
Machine weight (including water tank): 39.5 kg | 52 kg | 54 kg | 120 kg
Power consumption: 800 W | 1400 W | 1600 W | 1800 W
Depth of focus: 3 mm | 5 mm | 10 mm | 15 mm
Scan width: 2–50 mm
Auxiliary gas: Compressed air / Nitrogen
Barometric pressure: 0.5–0.8 MPa
Optional package: Handheld configuration available
Operating temperature range: 5–40°C

Sample display
Manufacturer-provided sample images illustrate typical laser cleaning results and machine configurations.

Technical specifications

• Product name: Laser Cleaning Machine (TH-LC series)
• Commodity ID: 1475857242023153664
• Model / series: TH-LC series (TH-LC-100D-A, TH-LC-200D-A, TH-LC-300D-A, TH-LC-500D-A)
• Laser type: Fiber-optic laser
• Wavelength: 1064 nm
• Available laser power: 100 W, 200 W, 300 W, 500 W
• Cooling: Air cooling or water cooling
• Recommended water temperature: 18–25°C
• Cabinet dimensions (by model): 575×400×500 mm; 610×500×700 mm; 640×540×730 mm; 850×830×960 mm
• Machine weight (including water tank) (by model): 39.5 kg; 52 kg; 54 kg; 120 kg
• Power consumption (by model): 800 W; 1400 W; 1600 W; 1800 W
• Depth of focus (by model): 3 mm; 5 mm; 10 mm; 15 mm
• Scan width: 2–50 mm
• Auxiliary gas: Compressed air or nitrogen
• Barometric pressure: 0.5–0.8 MPa
• Optional package: Handheld configuration available
• Operating temperature range: 5–40°C
