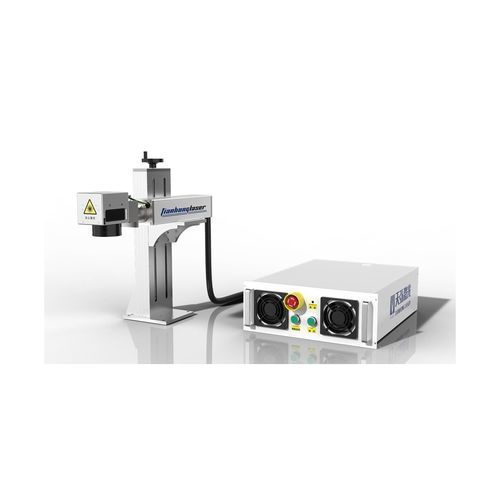

Fiber laser marking machine

plasticmetalfor integration

Product overview
The machine uses a 1064 nm fiber laser well absorbed by metals and coloured plastics, producing clear, high-contrast markings with controllable marking depth. It is suitable for wire and small-component marking in industrial production environments.

Features

• 1064 nm fiber laser compatible with metals and coloured plastics
• Marking depth 0.01–0.4 mm and minimum line width 0.015 mm
• High-speed linear scanning up to 7000 mm/s with repeatability ±0.03 mm
• Continuous output laser power ≥20 W; total power 800 W
• Optional marking area 100 × 100 mm; character height from 0.2 mm

Product details

• Commodity name: Wire Marking Machine
• Commodity ID: 1475857243457605632

Technical specifications

• Total power: 800 W
• Marking range: 100 mm × 100 mm (optional)
• Laser engraving speed: linear scanning 7000 mm/s
• Line width lower limit: 0.015 mm
• Engraving depth: 0.01–0.4 mm
• Repeatability: ±0.03 mm
• Character limit: 0.2 mm
• Continuous output laser power: ≥20 W
• Current adjustment range: 6.5 A–20 A
• Current ripple: ≤1.6%
• Working switching frequency: 100 kHz
• Input resistance: 50 KΩ
• Input voltage: ±15–±28 VDC
• Electronic circuit stability: 20 PPM/℃
• Operating temperature: 0–50 ℃ (working: 15–40 ℃)
• Humidity: 45–85%
• Voltage and current (power input): 220 V, 5 A
• Power supply frequency: 50/60 Hz

Applications & benefits

• Designed for marking wires, cables and small metal parts for traceability: serial numbers, logos, barcodes and QR codes.
• Suitable for inline integration in production and automated marking stations.
• Provides precise, durable markings with minimal thermal impact on components.
