Laser marking system TH-FLCS series

3D laserautomaticfor the microelectronics industry

Product description
Widely used in mobile communications, IoT projects, automotive IoT components, Industry 4.0 and medical industries for local activation and subsequent metallization of 3D plastic parts using LDS (Laser Direct Structuring). The system enables precise laser activation and patterning on injection-molded three-dimensional components to form conductive traces via electroless plating.

Basic identifiers

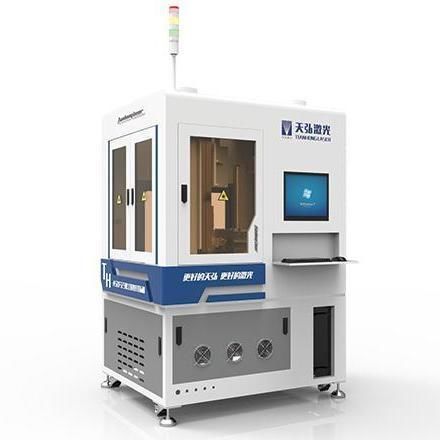

• Commodity name: Five-axis 3D Marking System (LDS)
• Commodity ID: 1475857223626936320

Features
The system uses a motion control platform to guide the laser along the electronic circuit trajectory and project the beam onto three-dimensional plastic parts. Laser activation alters the doped plastic surface, exposing metal atoms that serve as a seed layer for electroless plating. During plating the activated areas grow a metal layer (surface metallization) of approximately 5–10 μm, enabling three-dimensional circuit formation on the part.

Specifications (table)
Device model: TH-FLCS30 | TH-FLCS50 | TH-FLCS100
Laser average output power: 30W | 50W | 100W
Laser wavelength: 1064nm
Pulse width: 2—350 ns
Laser repetition rate: 1 KHz—4000 KHz
Engraving range: 100 mm × 100 mm × 40 mm (standard); 300 × 300 × 200 mm (optional)
Engraving line speed: ≤ 7000 mm/s
Width lower limit: 0.015 mm
Repeatability: ≤ 0.005 mm
XYZ motion module accuracy: ±0.01 mm
Machine power consumption: 1500 W
Power supply requirement: 220 V ±22 V / 50 Hz / 10 A
Overall dimensions: 1150 mm × 1360 mm × 2000 mm
Total weight: 750 Kg

Sample display
Sample images and example marking outputs are available to illustrate typical results produced by the Five-axis 3D Marking System (LDS). Contact for sample files and process parameters.

Technical specifications

• Device model: TH-FLCS30, TH-FLCS50, TH-FLCS100
• Laser average output power: 30W / 50W / 100W (depending on model)
• Laser wavelength: 1064 nm
• Pulse width: 2–350 ns
• Repetition rate: 1 KHz – 4000 KHz
• Engraving range: 100 × 100 × 40 mm (standard); 300 × 300 × 200 mm (optional)
• Engraving line speed: ≤ 7000 mm/s
• Minimum line width: 0.015 mm
• Repeatability: ≤ 0.005 mm
• XYZ motion accuracy: ±0.01 mm
• Machine power consumption: 1500 W
• Power supply requirement: 220 V ±22 V / 50 Hz / 10 A
• Overall dimensions: 1150 mm × 1360 mm × 2000 mm
• Total weight: 750 Kg
