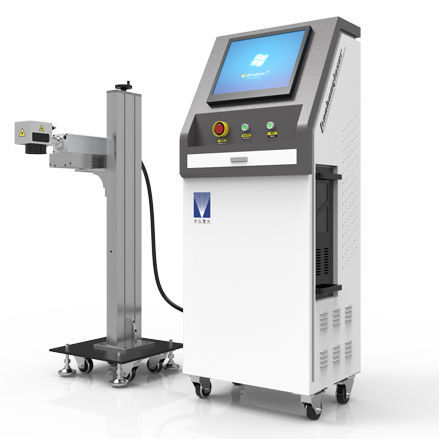

Fiber laser coding machine LMS series

CO2 laserUV laserfor electronic components

Product description
Suitable for marking various non-metallic materials such as paper, glass, plastic, leather and wood. Particularly adapted for high-speed production lines in sectors such as food & beverage, cosmetics, pharmaceuticals, tobacco and electronic components.

Features

• Equipped with imported maintenance-free CO2 lasers, fiber lasers and UV lasers combined with dedicated galvanometer scanners for flying laser coding on packaging and production lines.
• Multiple laser types enable marking on different substrates, replacing ink coders for printing dates, batch numbers and text directly on products or packaging.
• Durable marks with high anti-counterfeiting capability, no consumables, low operating cost and straightforward operation for mass production environments.
• Full computer control with a Chinese-language interface; intuitive operation. Supports common software for importing graphics and text for quick setup and flexible layout.

Applications

• Food and beverage
• Cosmetics
• Pharmaceuticals
• Tobacco
• Electronic components
• Other mass-production lines

Specifications (table summary)
Device models: TH-CO2LMS30; TH-CO2LMS60; TH-UVLMS50W; TH-UVLMS100W; TH-FLMS50W; TH-FLMS51W
Laser type: Imported CO2 (CO2 models); UV (UV models); Fiber (fiber models)
Laser power: 30 W / 50 W / 60 W / 100 W
Marking method: Vector / dot-matrix (5x7 / 6x12 / 7x14 / 8x16 / 12x24)
Marking range: 50×50 mm, 75×75 mm, 110×110 mm (optional)
Depth of focus: Varies with selected field lens
Information output method: Text string method
Text positioning: Any row within reachable range (adjustable)
Flying marking speed: Steady-state ≤ 130 m/min
Character height: Adjustable (mm)
Font support: SHX single-line fonts and customer-proprietary laser fonts
Marking options: Automatic serial numbers, batch numbers, real-time clock and automatic production date

Technical specifications

• Commodity name: Flying Laser Coding Machine
• Commodity ID: 1475857212184875008
• Model / series: LMS series (models listed above)
• Laser power options: 30 W, 50 W, 60 W, 100 W
• Laser types available: CO2 (imported, maintenance-free), UV, Fiber
• Field sizes (marking areas): 50×50 mm; 75×75 mm; 110×110 mm (optional)
• Marking methods: Vector and dot-matrix modes (5×7, 6×12, 7×14, 8×16, 12×24)
• Flying marking speed: ≤ 130 m/min (steady state)
• Character height: Adjustable (mm)
• Depth of focus: Varies with chosen field lens
• Information output: Text string method; adjustable row positioning
• Font support: SHX single-line fonts and proprietary special fonts
• Marking functions: Automatic serial number, batch number, real-time clock, automatic production date
