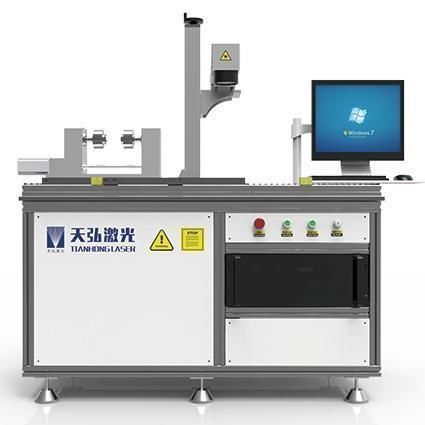

Laser marking machine TH-Y2-FLMS

for stainless steelfor cylindrical partswith rotary table

Product overview
The equipment is designed for the medical industry and is used to mark precise angles, scale lines, conductive leads and arcs on stainless-steel cylindrical tubes.

Features

• Especially suitable for marking continuous patterns and characters on large angular surfaces
• 360° rotation for marking text and patterns around cylindrical parts
• Uniform marking without projection distortion
• Angular resolution lower limit: 360°/8000
• Maximum workpiece load: 40 kg

Product attributes

• Commodity name: Cylindrical Laser Marking Machine
• Commodity ID: 1475857222221844480
• Laser power (options): 20W / 30W / 50W / 60W

Sample display
Includes sample images of the cylindrical-surface laser marking machine and example marking results on cylindrical surfaces.

Technical specifications

• Device model: TH-Y2-FLMS
• Laser power: 20W / 30W / 50W / 60W
• Laser wavelength: 1064 nm
• Clamping method: Three-jaw chuck
• Drive mode: Servo motor + screw
• Positioning accuracy: ±0.05 mm
• Repeatability: ±0.01 mm
• Power supply: 220V / Single 50A / 20A
• Processing range: 100 x 100 mm (optional)
• Dimensions: 1500 x 600 x 1600 mm
