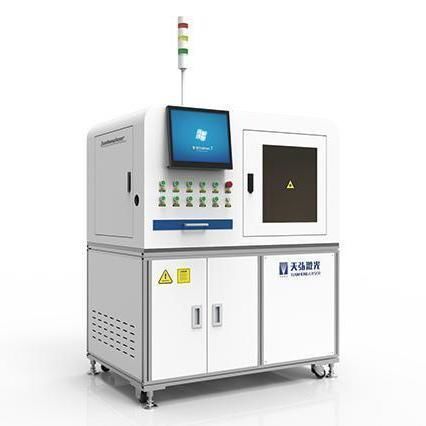

Fiber laser marking machine TH-MP-FLMS series

metalfor integrationcompact

Product overview
The TH-MP-FLMS series is designed for automated laser marking of metal nameplates. The system features a compact footprint, reliable components, powerful control software and an operator-friendly workflow adapted to high-volume production and line integration.

Features

• No consumables and low operating cost; suitable for mass production and continuous operation.
• Full PC control with an intuitive interface; supports import of common design files and templates.
• Equipped with imported fiber lasers (IPG, SPI, Raycus) with reflection isolation and high peak output; average MTBF around 100,000 hours.
• Single-mode output and fine spot size for high-precision, high-contrast marking.

Specifications table
Device model: TH-MP-FLMS-20 | TH-MP-FLMS-50 | TH-MP-FLMS-100
Laser type: Imported IPG fiber laser (applies to models)
Laser wavelength: 1064nm
Targeting: Fixture shape positioning (applies to models)
Auto focus method: Side sensor positioning / distance sensor positioning (model-dependent)
Processing stations: Single station | Multi-station options available
Laser power options: 20W | 50W | 100W
Handling method: Single-station unloading | Multi-station receiving and unloading (model-dependent)
Power requirements: 220V, single phase, 50Hz, 20A
Equipment dimensions: 1020x750x1900mm (20W); 1300x900x1600mm (50W); 2400x1050x1800mm (100W)
Special function: Grinding to remove metal shavings (available on certain models)

Technical specifications

• Product name: Nameplate Automatic Laser Marking Machine
• Commodity ID: 1475857216471453696
• Model/series: TH-MP-FLMS series (TH-MP-FLMS-20, TH-MP-FLMS-50, TH-MP-FLMS-100)
• Laser power: 20W / 50W / 100W (options)
• Laser type: Imported IPG fiber laser (brands referenced: IPG, SPI, Raycus)
• Laser wavelength: 1064 nm
• Targeting: Fixture shape positioning
• Auto-focus: Side sensor positioning and distance sensor positioning (depending on configuration)
• Processing stations: Single or multi-station configurations
• Handling: Single-station unloading or multi-station receiving and unloading (depending on model)
• Power supply: 220V, single phase, 50Hz, 20A
• Equipment dimensions: 1020x750x1900mm (20W); 1300x900x1600mm (50W); 2400x1050x1800mm (100W)
• Special functions: Grinding to remove metal shavings (model-dependent)
• Advantages: No consumables, low operating cost, simple operation; suitable for batch and streamlined nameplate marking
