SiC power module TH15DD7560C 7-WT

BiDi DCDC

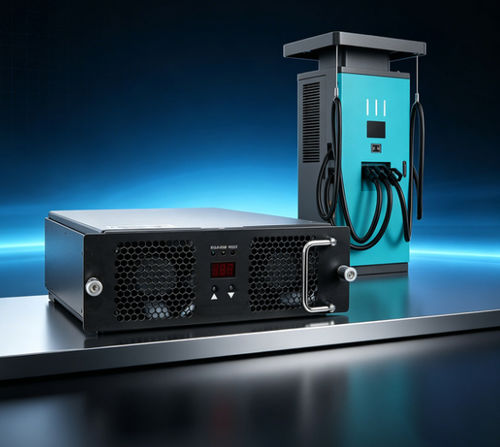

TH15DD7560C 7-WT, the bidirectional DC-DC charging and discharging device developed by Shijiazhuang Tonhe Electronic Technology Co., Ltd. can be applied to charging stations of high-power electric vehicles based on DC bus, and can also be used in micro-grid energy storage system with PCS.
The TH15DD7560C7 charging and discharging module adopts the industry-leading "dual active full bridge (DAB)" extension structure, featuring high power density, high-frequency electrical isolation of input and output, bidirectional energy flow, wide voltage and so on.

Busbar side - Voltage Range - 600VDC~800VDC
Current Range - 0~25A
Rated Current
20A
Stabilized Voltage Precision - <±0.5 (600VDC800VDC)
Stabilized Current Precision - ≤±1% (output load: 20%~100% rated range)
Load Regulation - ≤±0.5%
Start the overshoot - ≤±3%
DC Side - Voltage Range - 200VDC~750VDC
Current Range - 1~25A
Rated Current
20A
Stabilized Voltage Precision - <±0.5(200VDC~750V)
Stabilized Current Precision - ≤±1% (output load: 20%~100% rated range)
Load Regulation - ≤±0.5%
Start the overshoot - ≤±3%
Efficiency - Forward (high voltage side→low voltage side)mode - ≥95.5%, @750VDC,50%~90% load current
Reverse (low voltage→high voltage) mode - ≥95.5%, @750VDC,50%~90% load current
Operating Environment - Working Tempurature - -30℃~+65℃
Relative Humidity - ≤95% no condensation
Altitude - ≤2000mderating above 2000m
Product Features - Cooling Method - Fan cooling
Communication Protocol - CAN
Address Setting - Digital screen display,button operation
Dimension - 458mm×218mm×85mm(D×W×H
Weight - ≤13kg
MTBF - 500000 hours
