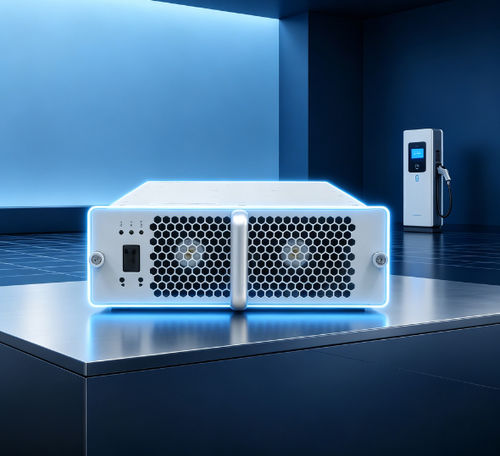

EV charger module TH20F2010C8E-WT

for electric vehiclesDC

Product Brief
TH20F2010C8E-WT is an AC/DC charger module rectifier designed for EV charging stations. It supports a three-phase four-wire (3P+PE) AC input, wide AC input ranges and delivers up to 20 kW with a constant-power operating window at 100–200 VDC. The module integrates CAN-bus communication for parameter configuration, telemetry and centralized monitoring control.

Product Advantages

• Wide AC input range and robust input protection
• Very wide DC output regulation: 10–200 VDC (typical operation 20–200 VDC)
• Constant-power range: 100–200 VDC (20 kW constant within this window)
• High peak efficiency (datasheet ≥96%) and high power factor (≥0.99 at full load)
• Low total harmonic distortion (THD ≤5% at >50% load)
• Low standby consumption <10 W and wide operating temperature range
• Digital parallel-current sharing (imbalance ≤±5%) and hot-plug support
• Intelligent fan control for thermal management

Protection Functions

• Input over-voltage and under-voltage protection
• Input over-current protection and phase-loss detection
• Output over-voltage and output current limiting
• Output reverse-current protection and short-circuit auto-recovery
• Ambient temperature detection and thermal protection

Parametric Performance (selected)

• Model: TH20F2010C8E-WT
• AC input: rated 380 VAC (3-phase, no neutral); operating range ~274–487 VAC; wide-range capability reported up to 260–520 VAC
• Input frequency: 50/60 ±5 Hz
• Input power factor: ≥0.99 (full load)
• Input protection thresholds: overvoltage ~490 ±10 VAC; undervoltage ~270 ±10 VAC
• DC output rated power: 20 kW
• Output voltage regulation: typically 10–200 VDC (param tables list 20–200 VDC)
• Output current range: 0.5–200 A
• Constant-power window: 100–200 VDC for constant 20 kW output
• Peak efficiency: ≥96% (datasheet); some measurement points list ≥94%
• Soft-start time: 3–8 s; short-circuit: auto-recovery protection
• Voltage regulation accuracy: ≤±0.5%; current regulation accuracy: ≤±1%
• THD: ≤5% (at >50% load); current sharing imbalance ≤±5%
• Operating temperature: -40 °C to +75 °C; relative humidity ≤95% (no condensation)
• Altitude: ≤2000 m (derating above)
• Cooling: fan cooling; standby power <10 W
• Communication: CAN bus (addressing via front-panel digital display and keys)
• Dimensions (without handle): 460 × 218 × 84 mm; weight ≤20 kg; MTBF ~500,000 h

Production & Test
Manufactured in Tonhe production facilities with ISO9001 and IATF16949 management systems. Production flows use automated SMT, automated assembly and aging tests. Test capabilities include semi-anechoic EMC chamber and full electrical/environmental validation systems for charger modules.

Certifications & Export
Referenced certifications include ISO9001, IATF16949 and common product approvals (CE/TÜV where applicable). Modules have been exported to multiple international markets subject to local certification requirements.

Packaging & Shipping
Standard factory packaging; shipping options include express for samples and air/sea freight for bulk orders. Lead times vary with order quantity and customization.

FAQ (summary)

• Communication protocol: CAN bus (typical 125 kbps, 5 V logic)
• Potting: series supports adhesive potting where required
• Installation orientation: horizontal, vertical or inverted depending on cabinet design
• Typical lead time: sample/stock and production lead times depend on quantity and custom requirements
• Warranty: standard 12 months from receipt (terms subject to agreement)

Technical specifications

• Model: TH20F2010C8E-WT
• Rated output power: 20 kW
• Output voltage regulation: 10–200 VDC (documented range 20–200 VDC)
• Constant power range: 100–200 VDC
• Output current: 0.5–200 A
• Peak efficiency: ≥96% (datasheet)
• Power factor: ≥0.99 (full load)
• THD: ≤5% (>50% load)
• Standby power: <10 W
• AC input: 380 VAC nominal (3-phase); operating ~274–487 VAC
• Frequency: 50/60 ±5 Hz
• Cooling: fan cooling
• Dimensions: 460 × 218 × 84 mm
• Weight: ≤20 kg
• Operating temperature: -40 °C to +75 °C
