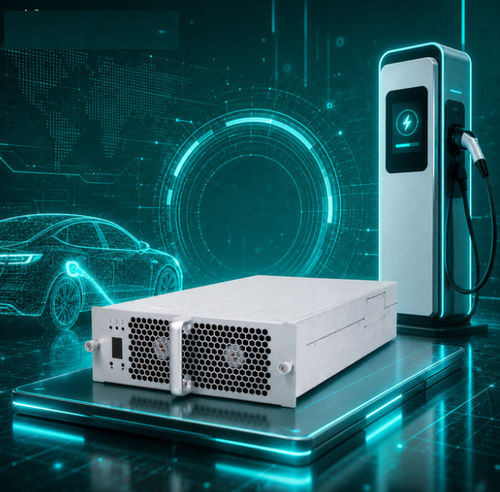

Electric vehicle charger module TH20F10025C7E-WT

DC

Product Introduction

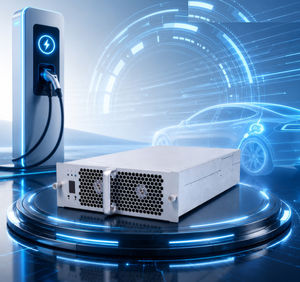

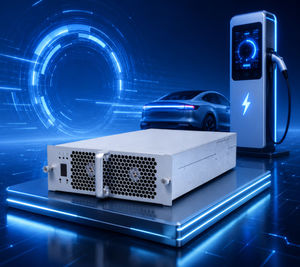

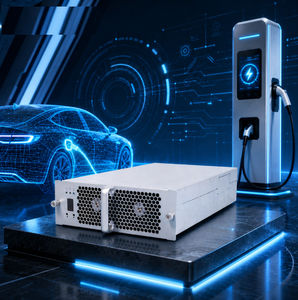

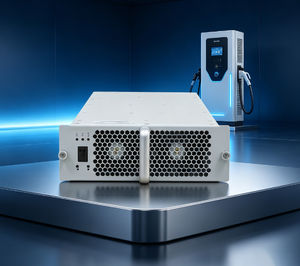

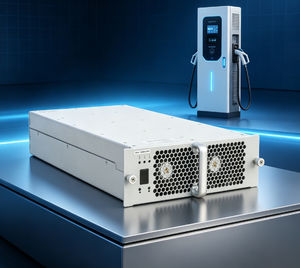

The TH20F10025C7E-WT is a 20 kW AC/DC fast charging power module designed for EV charging stations. It delivers constant power across an ultra-wide output range and features high power density and intelligent air-cooled thermal management. The module accepts three-phase four-wire AC input (274–487 Vac) and provides a rated output power of 20 kW with a constant power range from 300 to 1000 Vdc. Communication with the station controller is via CAN bus for parameter setting and operational control.

Product Advantages

• Wide constant power range: 300–1000 VDC
• Ultra-low standby power consumption: <10 W
• Low total harmonic distortion: ≤5%
• Wide operating temperature: -40℃ to +75℃
• High conversion efficiency: peak efficiency ≥96%

Parametric Performance / Key Data
Model No.: TH20F10025C7E-WT
AC Input - Voltage: Rated 380 Vac, three-phase (operating range 274–487 Vac)
AC Input - Frequency: 50±5 Hz
AC Input - Power Factor: ≥0.99
AC Input - Overvoltage Protection: 490±10 Vac
AC Input - Undervoltage Protection: 270±10 Vac
DC Output - Rated Output Power: 20 kW
DC Output - Voltage Range: 50–1000 Vdc
DC Output - Current Range: 0.5–67 A
DC Output - Constant Power Range: 300–1000 Vdc (constant 20 kW)
DC Output - Peak Efficiency: ≥96%
DC Output - Soft Start Time: 3–8 s
DC Output - Short Circuit Protection: Self-rollback protection
DC Output - Voltage Regulation Accuracy: ≤±0.5%
DC Output - THD: ≤5%
DC Output - Current Regulation Accuracy: ≤±1%
DC Output - Current Sharing Imbalance: ≤±5%
Operation Environment - Working Temperature: -40℃ to +75℃
Operation Environment - Relative Humidity: ≤95% (no condensation)
Operation Environment - Altitude: ≤2000 m (derating above 2000 m)

Features / Additional Information

• Cooling method: fan cooling
• Standby power consumption: <10 W
• Communication protocol: CAN (baud rate 125 kbs, voltage level 5 V)
• Address setting / UI: digital screen display with keys
• Module dimensions (L×W×H): 460 × 218 × 84 mm
• Weight: ≤13 kg
• MTBF: 500,000 hours
• Installation: horizontal, side standing or upside down (upside down may require front panel customization)
• Supports potting (glue filling) and OEM/ODM customization

Characteristics / Technical Specifications

• Model No.: TH20F10025C7E-WT
• Brand: TonHe
• Rated Output Power: 20 kW
• Output Voltage Range: 50–1000 Vdc
• Constant Power Range: 300–1000 Vdc (constant 20 kW)
• Output Current Range: 0.5–67 A
• Peak Efficiency: ≥96%
• Standby Power: <10 W
• THD: ≤5%
• Operating Temperature: -40℃ to +75℃
• Communication: CAN
• Dimensions: 460 × 218 × 84 mm
• Weight: ≤13 kg
• MTBF: 500,000 hours
