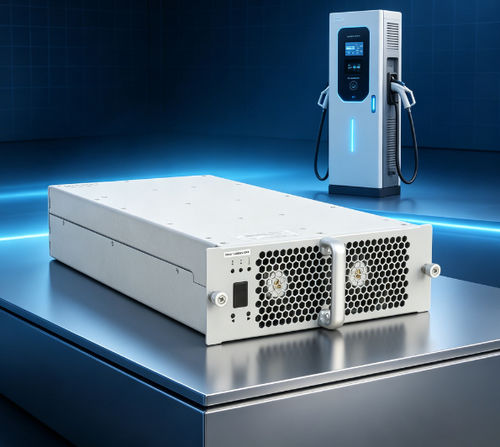

Embedded DC/DC converter TH20F1210C8E-WT

for EV chargervariable-outputfan cooled

Product Overview
The TH20F1210C8E-WT is a 20 kW EV DC charging power module designed for integration in charging piles and stations. It supports wide AC input and a broad DC output range with a constant-power band for efficient fast charging. The module uses intelligent fan cooling and communicates with the host controller via CAN for configuration and control.

Key Advantages

• Wide AC input range: 260–520 Vac (three-phase + PE)
• DC output range: 20–120 Vdc, constant-power operation at 100–120 Vdc
• Rated output power: 20 kW
• Peak efficiency ≥96% and high power factor ≥0.99
• Low THD ≤5% and standby consumption <10 W
• Operating temperature range −40 °C to +75 °C
• Digital parallel control with current sharing imbalance ≤±5%
• Smart fan control based on device temperature, output voltage and current
• Hot-plug capable for fast module replacement
• Comprehensive protections: input over/under-voltage, input over-current, phase-loss; output over-voltage, current limit, reverse flow; and temperature monitoring

Parametric Performance
Model: TH20F1210C8E-WT
AC input voltage: Rated 380 VAC (three-phase, no neutral); operating range 274–487 VAC
AC input frequency: 50/60 ±5 Hz
Input power factor: ≥0.99
Input overvoltage protection: 490 ±10 VAC
Input undervoltage protection: 270 ±10 VAC
DC rated output power: 20 kW
DC output voltage range: 20–120 VDC
DC output current range: 0.5–200 A
Constant power range: 100–120 VDC (20 kW output within range)
Peak efficiency: ≥96%
Soft-start time: 3–8 s
Short-circuit protection: Auto-recovery/self-rollback
Voltage regulation accuracy: ±0.5% max
Current regulation accuracy: ±1% max
Total harmonic distortion (THD): ≤5% (≥50% load)
Current sharing imbalance: ≤±5%
Operating temperature: −40 °C to +75 °C
Relative humidity: ≤95% (non-condensing)
Altitude: ≤2000 m (derating above 2000 m)
Cooling method: Fan cooling with smart control
Standby power: <10 W
Communication: CAN (address via digital display and keys)
Dimensions (without handle): 460 × 218 × 84 mm (L × W × H)
Weight: ≤20 kg
MTBF: 500,000 hours

Production & Test

• Production: ISO9001 and IATF16949 certified manufacturing with SMT lines, automated paste printing, wave soldering, automated coating and aging tests; annual capacity >500,000 modules.
• Test facilities: Semi-anechoic EMC 3 m chamber; Chroma electronic load and AC source; Yokogawa WT1800 power analyzer; Fluke meters; temperature/humidity chambers; AXOS8 and transient immunity test systems.
• Certifications: CE, TUV and applicable automotive/quality certificates.

FAQ / Additional Product Information

• Communication: CAN, baud rate example 125 kbps, CAN voltage level 5 V.
• Glue potting: Supported for all module variants.
• Installation orientation: Horizontal, side-standing or upside-down (upside-down may require front panel without handle — customization available).
• Warranty: Standard 12 months from shipment receipt.
• After-sales: Online and on-site service options; manufacturer offers 24-hour response scheme depending on contract.

Technical Specifications

• Model: TH20F1210C8E-WT
• Rated output power: 20 kW
• Output voltage range: 20–120 VDC
• Constant power range: 100–120 VDC (20 kW constant)
• Output current range: 0.5–200 A
• Peak efficiency: ≥96%
• Input voltage: Rated 380 VAC three-phase; operating 274–487 VAC
• Input frequency: 50/60 ±5 Hz
• Input power factor: ≥0.99
• Input protection thresholds: Overvoltage 490 ±10 VAC; Undervoltage 270 ±10 VAC
• THD: ≤5%
• Voltage regulation accuracy: ±0.5%
• Current regulation accuracy: ±1%
• Current sharing imbalance: ≤±5%
• Cooling: Fan cooling with smart control
• Standby consumption: <10 W
• Operating temperature: −40 °C to +75 °C
• Relative humidity: ≤95% (non-condensing)
• Altitude: ≤2000 m (derating above)
• Dimensions: 460 × 218 × 84 mm (L × W × H) without handle
• Weight: ≤20 kg
• MTBF: 500,000 hours
• Communication: CAN bus; address via digital screen and keys
