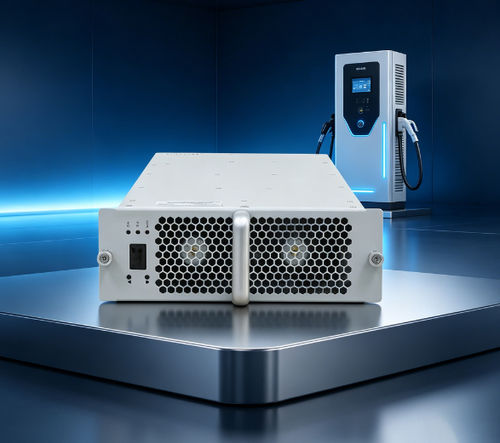

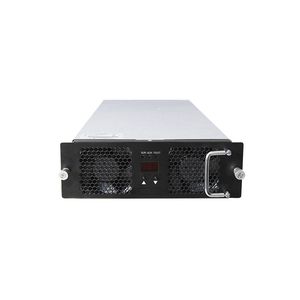

Digital power module TH20F10025C7E-WT

for charging electric vehiclesACDC

Product Introduction
TH20F10025C7E-WT is an AC/DC charging module designed for EV charging stations. It delivers a rated output power of 20 kW, an ultra-wide constant-power output range (300–1000 VDC), and supports three-phase AC input from 274 Vac to 487 Vac. The module uses intelligent air-cooled thermal management and interfaces with the main controller via CAN bus for parameter configuration and status control.

Product Advantages

• Wide constant-power output range: 300–1000 VDC
• Ultra-low standby consumption: <10 W
• Low total harmonic distortion (THD): ≤5%
• Wide operating temperature range: -40℃ to +75℃
• High peak conversion efficiency: ≥96%

Parametric Performance
AC input:
- Rated voltage: 380 Vac, three-phase (no neutral); operating range 274–487 Vac
- Frequency: 50 ±5 Hz
- Input power factor: ≥0.99
- Input overvoltage protection: 490 ±10 Vac
- Input undervoltage protection: 270 ±10 Vac

DC output:
- Rated output power: 20 kW
- Output voltage range: 50–1000 VDC
- Output current range: 0.5–67 A
- Constant-power range: 20 kW output maintained when Vout is 300–1000 VDC
- Peak efficiency: ≥96%
- Soft start time: 3–8 s
- Short-circuit protection: automatic self-rollback/reset
- Voltage regulation accuracy: ≤±0.5%
- THD: ≤5%
- Current regulation accuracy: ≤±1%
- Current sharing imbalance: ≤±5%

Operation Environment
- Operating temperature: -40℃ to +75℃
- Relative humidity: ≤95% (non-condensing)
- Altitude: ≤2000 m (derating above 2000 m)

Product Features
- Cooling method: fan cooling (intelligent control)
- Standby power consumption: <10 W
- Communication protocol: CAN (typical baud rate 125 kbps, voltage level 5 V)
- Address/setting: digital display and key operation
- Module dimensions: 460 × 218 × 84 mm (L × W × H)
- Weight: ≤13 kg
- MTBF: 500,000 hours

Additional Technical Notes
- Output characteristic: constant 20 kW across 300–1000 VDC output range
- Output current 0.5–67 A supports a range of vehicle requirements
- Protections: soft start (3–8 s), precise voltage/current regulation, short-circuit self-recovery

Manufacturing & Test Capability
TonHe Technology holds ISO9001 and IATF16949 certifications. Production lines include automatic SMT, solder paste printing and inspection, wave soldering, conformal coating, and aging/test lines. Annual production capacity exceeds 500,000 charging modules across more than 50 production processes.

Test Center
Test facilities include a CNAS-certified EMC lab with a semi-anechoic 3m chamber, Chroma DC loads, AC sources, Yokogawa WT1800 power analyzers, environmental chambers (temperature & humidity) and AXOS8 transient immunity test systems.

FAQ / Practical Details

• Communication: CAN; typical baud rate 125 kbps; CAN voltage level 5 V.
• Glue filling: series supports potting/encapsulation.
• Installation: can be mounted horizontally, on side or inverted; inverted mounting may require a customized front panel without handle.
• Customization: OEM/ODM available; nameplate can include company name, logo and model; color and shape customizable.
• Warranty: standard 12 months from shipment receipt.

Technical Specifications

• Model: TH20F10025C7E-WT
• Brand: TonHe
• Rated output power: 20 kW
• Output voltage range: 50–1000 VDC (constant power 300–1000 VDC)
• Output current range: 0.5–67 A
• Peak efficiency: ≥96%
• Standby power: <10 W
• THD: ≤5%
• Operating temperature: -40℃ to +75℃
• Cooling: fan cooling
• Communication: CAN
• Dimensions (L×W×H): 460 × 218 × 84 mm
• Weight: ≤13 kg
• MTBF: 500,000 hours
