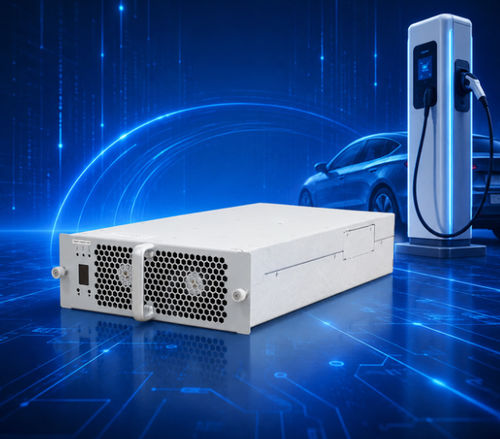

Charging electric vehicle power module TH20F10025C7E-WT

ACDC

Product Introduction
TH20F10025C7E-WT is a 20 kW AC/DC fast charging power module for EV charging piles, engineered for high efficiency, high power density and a wide constant-power output range. Supports three-phase four-wire AC input 274–487 Vac and delivers rated output power of 20 kW with a constant-power range from 300 to 1000 Vdc. Intelligent fan cooling and CAN communication enable parameter configuration and status control.

Product Advantages

• Wide constant-power range: 300–1000 VDC
• Ultra-low standby power: <10 W
• Low total harmonic distortion: ≤5%
• Wide operating temperature: -40℃ to +75℃
• High peak efficiency: ≥96%

AC Input
Rated voltage: 380 Vac (three-phase), operating range 274–487 Vac. Frequency: 50 ±5 Hz. Input power factor ≥0.99. Input over/undervoltage protection: 490±10 Vac / 270±10 Vac.

DC Output
Rated output power: 20 kW. Output voltage range: 50–1000 Vdc. Output current range: 0.5–67 A. Constant 20 kW between 300–1000 Vdc. Peak efficiency ≥96%. Soft start time: 3–8 s. Protections: short-circuit self-recovery, voltage regulation accuracy ≤±0.5%, current regulation accuracy ≤±1%, current sharing imbalance ≤±5%, THD ≤5%.

Operation Environment
Operating temperature: -40℃ to +75℃. Relative humidity ≤95% (non-condensing). Altitude ≤2000 m (derating above 2000 m).

Product Features
Cooling: fan cooling. Standby power <10 W. Communication: CAN (125 kbps, 5 V). Address setting via display and keys. Dimensions: 460 × 218 × 84 mm (L×W×H). Weight ≤13 kg. MTBF: 500,000 hours. Supports glue potting and multiple installation orientations (horizontal, vertical, inverted; inverted may require a custom front panel).

Production & Test
Manufactured under ISO9001 and IATF16949 quality systems. Production lines include SMT, automatic solder paste printing and inspection, wave soldering and automated assembly; annual capacity >500,000 modules. Test center includes CNAS-certified EMC lab, semi-anechoic 3 m chamber and advanced test equipment. Certifications: CE, TUV, etc.

Technical Specifications

• Model: TH20F10025C7E-WT
• Brand: TonHe
• Rated Power: 20 kW
• Output Voltage Range: 50–1000 Vdc (300–1000 Vdc constant 20 kW)
• Output Current Range: 0.5–67 A
• Input Voltage: 380 Vac rated (274–487 Vac)
• Input Frequency: 50 ±5 Hz
• Power Factor: ≥0.99
• Peak Efficiency: ≥96%
• Total Harmonic Distortion (THD): ≤5%
• Standby Power: <10 W
• Operating Temperature: -40℃ to +75℃
• Cooling: Fan cooling
• Dimensions: 460 × 218 × 84 mm
• Weight: ≤13 kg
• MTBF: 500,000 hours
• Communication: CAN (125 kbps, 5 V)
