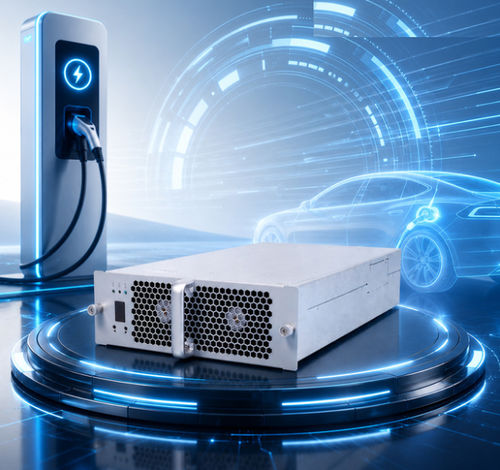

SiC power module TH20F2010C8E-WT

DCDC

Product Introduction
TH20F2010C8E-WT is an AC/DC module with high efficiency and high power density specially designed by Tonhe for EV charging stations. It is a three-phase four-wire system (three-phase + PE) input, supports 285VAC-475VAC input, and the maximum power is 20kW (constant power range 100-200VDC). The charging module communicates with the main monitoring through CAN bus to enable parameter setting, collect operating parameters and control the working state of the charging module.

Product Advantages

• Wide input voltage range (AC): 260~520Vac
• Super wide output voltage regulation (DC): 10~200Vdc
• Constant power range: 100-200Vdc
• High efficiency: peak ≥ 94%
• High power factor: full load ≥ 0.99
• Low harmonic content: more than half load ≤ 5%
• Low standby power consumption: <10W
• Wide operating temperature range: -30 ~ +75℃
• Digital flow technology: parallel machine uneven mobility < ±5%
• Smart fan control: device temperature, output voltage and current monitored for intelligent fan speed control
• Fast plug installation: supports hot-plug functionality
• Comprehensive protection functions

Protection Functions

• Input: over-voltage protection, under-voltage protection, input over-current protection, phase loss protection
• Output: over-voltage protection, current limiting protection, reverse current protection
• Environment: temperature detection and protection

Parametric Performance
Model No.: TH20F2010C8E-WT
AC input - Input voltage: Rated voltage 380VAC, three phase no center line, operating range 274-487VAC
AC input - Input frequency: 50/60 ±5Hz
AC input - Input power factor: ≥0.99
AC input - Input overvoltage protection: 490±10VAC
AC input - Input undervoltage protection: 270±10VAC
DC output - Rated output power: 20kW
DC output - Output voltage range: 20-200VDC
DC output - Output current range: 0.5~200A
DC output - Output constant power range: when output voltage is 100-200VDC, constant 20kW output
DC output - Peak efficiency: ≥96%
DC output - Soft start time: 3-8S
DC output - Short circuit protection: self-rollback protection
DC output - Voltage regulation accuracy: ≤±0.5%
DC output - THD: ≤5%
DC output - Current regulation accuracy: ≤±1%
DC output - Current sharing imbalance: ≤±5%
Operating environment - Working temperature: -40℃ ~ +75℃
Operating environment - Relative humidity: ≤95% no condensation
Operating environment - Altitude: ≤2000m, derating above 2000m
Product Features - Cooling method: Fan cooling
Product Features - Standby power consumption: <10W
Product Features - Communication Protocol: CAN (CAN bus for monitoring and control)
Product Features - Address setting: Digital screen display, keys operation
Product Features - Module dimension (without handle): 460 × 218 × 84 mm (L × W × H)
Product Features - Weight: ≤20 kg
Product Features - MTBF: 500000 hours

Production Center
Manufactured in facilities with ISO9001 and IATF16949 certifications. Production includes automatic SMT assembly lines, solder paste printing and inspection, wave soldering, protective spraying, aging detection lines and over 50 production processes, with annual output capacity of charging modules exceeding 500,000 units.

Test Center
Equipped with a world-class semi-anechoic 3m EMC chamber and comprehensive test systems including Chroma electric load, AC source, high-performance power analyzers, temperature and humidity chambers, and transient immunity test systems. Test capabilities support radiated emission, radiated immunity, surge, EFT and DIPs tests and full charger system testing.

Certificate Showcase
Company and product certifications include ISO9001, IATF16949 and product-related approvals (CE, TUV and others), with export references to multiple international markets.

Packaging & Shipping
Standard packaging information and shipment preparation are provided; products are packed for international transport.

FAQ

• What is the module communication protocol? — CAN with a CAN bus baud rate of 125 kbps and CAN voltage level 5 V.
• Do the modules support glue filling? — Yes, all series modules support potting/glue filling.
• What are the installation method requirements? — The module can be installed horizontally, standing on side, or upside down. Upside-down installation typically requires a front panel without a handle (customization may be required).
• What is the warranty? — Standard warranty is 12 months upon receipt of shipment.
• Is after-sales service provided? — Both online and on-site after-sales support can be provided depending on contract terms; a 24-hour response scheme can be offered for projects.

caractéristiques / spécifications techniques

• Model: TH20F2010C8E-WT
• Rated output power: 20 kW
• Output voltage range: 20–200 VDC
• Output current range: 0.5–200 A
• Constant power range: 100–200 VDC @ 20 kW
• Peak efficiency: ≥96%
• Input voltage (rated): 380 VAC three-phase; operating range 274–487 VAC
• Input frequency: 50/60 ±5 Hz
• Power factor: ≥0.99
• THD: ≤5%
• Standby power consumption: <10 W
• Operating temperature: -40℃ to +75℃
• Cooling: Fan cooling
• Dimensions (without handle): 460 × 218 × 84 mm (L × W × H)
• Weight: ≤20 kg
• Communication: CAN bus
• MTBF: 500,000 hours
