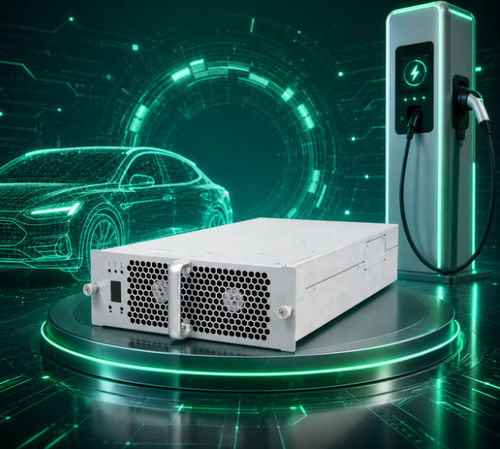

EV charger module TH20F2010C8E-WT

for electric vehiclesDCDC fast

Product Brief
TH20F2010C8E-WT is an AC/DC charger module rectifier designed for EV charging stations. It provides up to 20 kW output power, supports three-phase four-wire AC input (rated 380 VAC, operating range 274–487 VAC) and a DC output voltage range of 20–200 VDC. The module implements constant-power operation in the 100–200 VDC range and communicates with the main controller via CAN bus for parameter setting, telemetry and state control.

Product Advantages

• Wide AC input range: 274–487 VAC (rated 380 VAC, three-phase)
• Wide DC output regulation: 20–200 VDC; constant-power operation at 100–200 VDC
• Rated output power: 20 kW
• High peak efficiency: ≥96%
• High input power factor: ≥0.99 at full load
• Low harmonic distortion: THD ≤5% (≥50% load)
• Low standby consumption: <10 W
• Wide operating temperature: –40°C to +75°C
• Parallel digital control with current sharing imbalance ≤±5%
• Intelligent fan control with temperature and output monitoring
• Hot-plug capable for fast installation
• Comprehensive protections: input over/under-voltage, input over-current, phase-loss, output over-voltage, current limiting, reverse current, temperature protection

Key Parameters

• Model: TH20F2010C8E-WT
• Rated output power: 20 kW
• Output voltage range: 20–200 VDC
• Output current range: 0.5–200 A
• Constant power range: 100–200 VDC (20 kW)
• Peak efficiency: ≥96%
• AC input (rated): 380 VAC, three-phase; operating range 274–487 VAC
• Input frequency: 50/60 Hz ±5%
• Input power factor: ≥0.99
• Input overvoltage protection: 490 ±10 VAC
• Input undervoltage protection: 270 ±10 VAC
• Voltage regulation accuracy: ≤±0.5%
• Current regulation accuracy: ≤±1%
• THD: ≤5%
• Current sharing imbalance: ≤±5%
• Soft start time: 3–8 s
• Short-circuit: self-recovery protection
• Communication: CAN bus

Operating Environment & Mechanical

• Operating temperature: –40°C to +75°C
• Relative humidity: ≤95% (non-condensing)
• Altitude: ≤2000 m (derating above)
• Cooling: fan cooling
• Standby power consumption: <10 W
• Dimensions (without handle): 460 × 218 × 84 mm (L × W × H)
• Weight: ≤20 kg
• MTBF: 500,000 hours

Production & Test Overview
Manufactured in ISO9001 and IATF16949 certified facilities with automated SMT lines, wave soldering and aging/test lines. Test resources include semi-anechoic EMC chamber (3 m), power analyzers, temperature and humidity chambers and transient immunity test systems to ensure compliance and reliability.

Typical Applications

• EV charging station power modules (fast chargers, modular DC chargers)
• Charging system integrators and station manufacturers
• Fleet charging infrastructures and commercial charging sites
