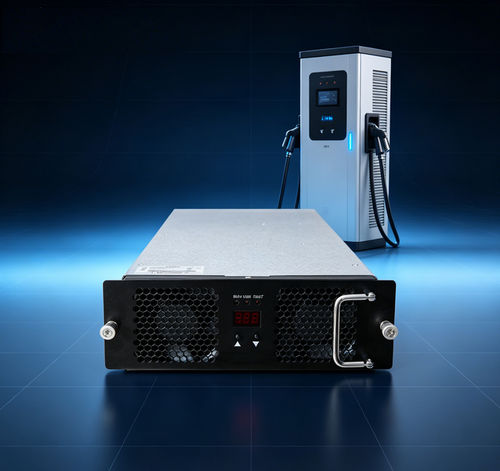

SiC power module TH20GT7550C7-WT

BiDi ACDC

Product brief
The TH20GT7550C7-WT is a bidirectional AC/DC charging/discharging module for vehicle-to-grid (V2G) applications. It delivers rated output power of 20 kW, supports DC-side constant-power operation in the 500–750 VDC range and accepts three-phase four-wire AC input (three-phase + PE). The module uses intelligent forced-air cooling and communicates with the main controller via CAN bus for parameter setting and operational control.

Overview
Designed for integration into commercial EV chargers and V2G charging stations, the module provides high efficiency in both AC→DC and DC→AC modes, precise voltage and current regulation, digital address setting with local display and button operation, and low standby power suitable for grid-interactive systems.

AC Side
Voltage range: 323 VAC – 456 VAC
Frequency: 50/60 Hz
Overvoltage protection: >456 VAC
Undervoltage protection: AC→DC efficiency: ≥95%

DC Side
Rated output power: 20 kW
Voltage operating range: 200–750 VDC
Current range: 1–40 A
Constant-power range: 500–750 VDC
DC→AC efficiency: ≥95%
Voltage regulation accuracy: ≤±0.5%
THD: ≤5%
Current regulation accuracy: ≤1%

Operating environment
Operating temperature: -30 °C to 65 °C
Relative humidity: ≤95% (no condensation)
Altitude: ≤2000 m (derating above 2000 m)

Product features

• Cooling: fan (forced-air) cooling
• Standby power consumption:
• Communication: CAN bus (typical baud rate 125 kbps; CAN voltage level 5 V)
• Address setting and display: digital screen with button operation
• Dimensions (D×W×H): 460 mm × 218 mm × 84 mm
• Weight: ≤11 kg
• MTBF: 500,000 hours
• Glue filling (potting) available on request

Production & Test
Manufactured on automated SMT lines with full assembly, debugging and aging verification. Supplier facilities include EMC and transient-immunity laboratories and power test equipment to validate modules against industry standards.

Selected FAQ (product-related)

• Communication protocol: CAN (typical baud rate 125 kbps; CAN voltage level 5 V).
• Glue filling: Modules can be supplied with potting/encapsulation if required.
• Installation orientation: Can be mounted horizontally, vertically or inverted; for non-standard mounting or front-panel modifications, contact the supplier for customization.
• Warranty: Standard warranty 12 months from receipt of shipment.

Technical specifications

• Model: TH20GT7550C7-WT
• Brand: Tonhe
• HS code: 850440
• AC voltage range: 323 VAC – 456 VAC
• AC frequency: 50/60 Hz
• Overvoltage protection: >456 VAC
• Undervoltage protection:
• AC→DC efficiency: ≥95%
• DC rated power: 20 kW
• DC voltage range: 200–750 VDC
• DC current range: 1–40 A
• DC constant-power range: 500–750 VDC
• DC→AC efficiency: ≥95%
• Voltage regulation accuracy: ≤±0.5%
• THD: ≤5%
• Current regulation accuracy: ≤1%
• Operating temperature: -30 °C to 65 °C
• Relative humidity: ≤95% (no condensation)
• Altitude: ≤2000 m (derating above 2000 m)
• Cooling: fan cooling
• Standby power:
• Communication: CAN bus
• Address/display: digital screen and buttons
• Dimensions (D×W×H): 460 mm × 218 mm × 84 mm
• Weight: ≤11 kg
• MTBF: 500,000 hours
