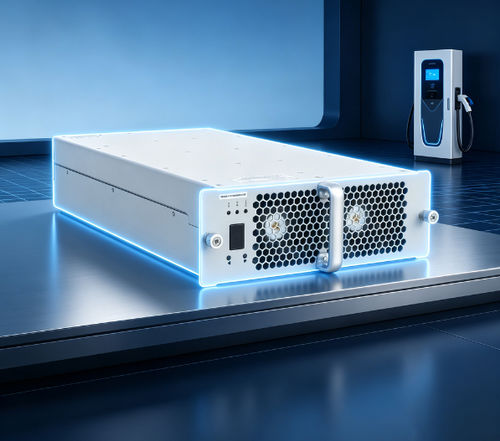

Electric vehicle charger module TH20F1210C8E-WT

EVDC

Product Brief
TH20F1210C8E-WT is a high-efficiency, high power-density DC charging power module designed for EV charging stations. It delivers 20 kW rated power with a wide DC output range and supports three-phase AC input across a broad voltage window. CAN communication and intelligent fan cooling enable system integration and thermal control.

Product Introduction
Engineered for commercial EV-charging applications, the TH20F1210C8E-WT emphasizes high efficiency, wide input/output ranges and reliable protection functions. It supports hot-plug installation, parallel operation with digital current sharing and CAN-based parameterization for integration into charging piles and station controllers.

Product Advantages

• Wide AC input range: 260–520 Vac (line voltage).
• Very wide DC output regulation: 20–120 Vdc.
• Constant power operation: 20 kW in the 100–120 Vdc window.
• High peak efficiency (spec table): ≥96% (product text peak ≥94%).
• High power factor: ≥0.99 at full load.
• Low harmonic distortion: THD ≤5% above half load.
• Low standby power: <10 W.
• Robust operating temperature: −40 to +75 °C.
• Digital parallel technology: current sharing imbalance ≤±5%.
• Smart fan control: temperature and output-based speed regulation.
• Hot-plug capable and fast plug installation.
• Comprehensive protections: input OVP/UVP/OCP/phase-loss; output OVP/current limiting; reverse-current protection; thermal monitoring.

Parametric Performance (key items)
Model: TH20F1210C8E-WT

AC input
Rated voltage: 380 VAC three-phase (no neutral). Operating range: 274–487 VAC (product text references 260–520 VAC line).
Input frequency: 50/60 ±5 Hz.
Input power factor: ≥0.99.
Input OVP: ~490±10 VAC. Input UVP: ~270±10 VAC.

DC output
Rated output power: 20 kW.
Output voltage range: 20–120 VDC.
Output current range: 0.5–200 A.
Constant power: 20 kW for 100–120 VDC output.
Peak efficiency: ≥96% (spec table) / peak ≥94% (summary).
Soft-start time: 3–8 s.
Short-circuit: auto rollback protection.
Voltage regulation accuracy: ≤±0.5%.
Current regulation accuracy: ≤±1%.
THD: ≤5% (above half load).
Current sharing imbalance: ≤±5%.

Operating environment
Operating temperature: −40 °C to +75 °C.
Relative humidity: ≤95% (no condensation).
Altitude: ≤2000 m (derating above 2000 m).

Product Features
Cooling: fan cooling with intelligent control.
Standby consumption: <10 W.
Communication: CAN (typ. 125 kbps, 5 V level documented in FAQ).
Addressing/UI: digital screen and key operation.
Dimensions (without handle): 460 × 218 × 84 mm (L × W × H).
Weight: ≤20 kg.
MTBF: 500,000 hours.

Production / Test / Certification Highlights
Manufactured in ISO9001 and IATF16949 quality facilities with full SMT, wave soldering, coating and aging lines. Test capabilities include a semi-anechoic 3 m EMC chamber, high-power DC loads, power analyzers, temperature & humidity chambers and transient test systems. Annual module production capacity up to 500,000 units after full processes.

Characteristics / Technical specifications

• Model: TH20F1210C8E-WT
• Rated output power: 20 kW
• DC output range: 20–120 VDC, 0.5–200 A
• Constant power: 20 kW at 100–120 VDC
• Peak efficiency: ≥96% (table) / peak ≥94% (text)
• AC input: nominal 380 VAC; operating range approx. 274–487 VAC (product text references 260–520 VAC)
• Input frequency: 50/60 ±5 Hz
• Power factor: ≥0.99
• THD: ≤5% (above half load)
• Standby consumption: <10 W
• Cooling: fan cooling with smart control
• Communication: CAN bus
• Dimensions: 460 × 218 × 84 mm (without handle)
• Weight: ≤20 kg
• Operating temperature: −40 °C to +75 °C
• Relative humidity: ≤95% (no condensation)
• Altitude: ≤2000 m (derating above)
• MTBF: 500,000 hours
