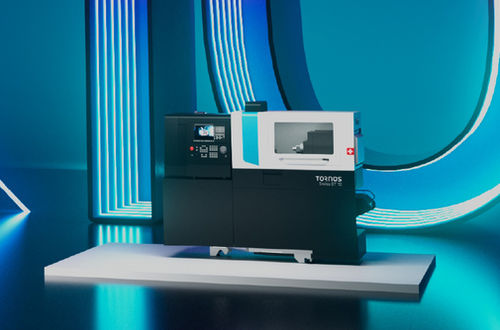

CNC Swiss lathe Swiss DT series

for small parts productionfor small workpiecesfor production lines

Overview The Swiss DT 7 & Swiss DT 10 are Swiss-type sliding headstock lathes engineered for precision small-part production. They combine a compact footprint (≈25% smaller than comparable 6-axis machines), modular configurations and up to 33 tools to reduce machining time while maintaining repeatable accuracy. High-frequency air spindles and optimized drive power support faster cycle times and fine surface finishes suitable for Electronics, Automotive, Medical & Dental and Micromechanics applications.

Key benefits

• Compact footprint for space-constrained production cells
• Scalable modular configurations to match process requirements
• Up to 33 tools with up to 8 rotating tools for multi-process capability
• Approximately 10% faster cycle times compared with previous generation
• High repeatability for batch-after-batch consistency

Medical & Dental

• Swiss-level accuracy for complex medical and dental geometries
• Faster changeovers (≈15% reduction in setup time) to support custom or small-batch production
• High repeatability suitable for surgical-grade components

Micromechanics

• Micron-level precision for tiny components and assemblies
• 33-tool capacity enables combined turning, milling and drilling operations
• Suitable for small gear shafts, micro-screws and other miniature parts

Electronics

• Platform designed for precision electronic components and connectors
• High-frequency spindles facilitate fine surface finishes and tight tolerances
• Compact build integrates easily into modern production lines

Automotive

• Adapted for high-volume, tight-tolerance small parts such as connectors and bushings
• High output with short cycle times and repeatable accuracy
• Modular options allow process-specific tooling layouts

Technical data (summary table) Swiss DT | | 7/6 | 10/6
Diameter | | mm/in | 7 / 0.276 | 10 / 0.39
Standard workpiece length with guide bush | | | 185 / 7.28 | 185 / 7.28
Maximum number of tools | | | 33 | 33
Maximum number of rotating tools | | | 8 | 8
Plug-and-play B axis | | | - | -
Spindle power (S1/S6) | kW/hp | | 4.0 (5.0) / 5.36 (6.70) | 4.0 (5.0) / 5.36 (6.70)
Counter spindle power (S1/S6) | kW/hp | | 4.0 (5.0) / 5.36 (6.70) | 4.0 (5.0) / 5.36 (6.70)
Direct-drive guide bush | | | No | No

Characteristics / technical specifications

• Models: Swiss DT 7 and Swiss DT 10 (Swiss DT series)
• Diameter capacity: Swiss DT 7 = 7 mm (0.276 in); Swiss DT 10 = 10 mm (0.39 in)
• Standard workpiece length with guide bush: 185 mm (7.28 in)
• Maximum number of tools: 33
• Maximum number of rotating tools: 8
• Plug-and-play B axis: not provided (-)
• Spindle power (S1/S6): 4.0 (5.0) kW / 5.36 (6.70) hp (both main and counter spindle)
• Counter spindle power (S1/S6): 4.0 (5.0) kW / 5.36 (6.70) hp
• Direct-drive guide bush: No
• Up to 33-tool capacity for versatile operations and up to 8 rotating tools
• High-frequency air spindles for fine surface finishes and precision machining
• Compact footprint (about 25% smaller than comparable 6-axis machines)
• Designed for Electronics, Automotive, Medical & Dental and Micromechanics production
