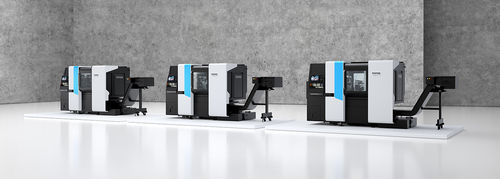

CNC Swiss lathe Swiss XT

8-axisfor bar machiningfor production

Precision meets possibility
The Swiss XT series pairs a compact footprint with multi‑system flexibility to support high‑efficiency bar machining. Overall dimensions are 3056 x 1440 x 2242 mm. Standard equipment includes three independent tool systems, multiple linear axis configurations and a range of optional modules to match production requirements.

Main advantages

• Maximize profitability with high cutting speed and optimized power distribution
• Quick guidebush conversion for rapid changeover between bar diameters
• Simplified programming with TISIS control environment
• Optional plug‑and‑play B‑axis to expand machining capability
• Double gang tool configuration for reduced cycle times
• Optional ACB Plus for improved chip evacuation
• Interchangeable tooling to lower tooling transition costs
• Designed for multi‑tool operations to increase throughput
• Long Z1‑axis mode for extended workpiece length
• Support for driven/rotating tools with advanced motor configurations

Embedded video titles (no links included)

• Swiss XT 32 overview
• Swiss XT 32 - machining area
• Swiss XT 32 - toolings
• Swiss XT - family overview

Technical table (family/variants)

• Header: Swiss XT | (blank) | 16/8 | 26/8 | 32/8 | 16/9 | 26/9 | 32/9
• Max bar diameter (mm): (blank) | mm | 16 | 25.4 | 32 (38 without guidebush) | 16 | 25.4 | 32 (38 without guidebush)
• Number of linear axes: (blank) | | 8 | 8 | 8 | 9 | 9 | 9
• Number of C axes: (blank) | | 2 | 2 | 2 | 2 | 2 | 2
• B axis: (blank) | | Optional | Optional | Optional | Optional | Optional | Optional
• Number of independent tool systems: (blank) | | 3 | 3 | 3 | 3 | 3 | 3
• Total number of tool positions: (blank) | | 42 | 42 | 42 | 42 | 42 | 42
• Position for rotating tools: (blank) | | 18 | 18 | 18 | 18 | 18 | 18

Technical specifications

• Compact overall dimensions: 3056 x 1440 x 2242 mm
• Series name: Swiss XT
• Three independent tool systems (standard)
• Multiple axis configurations available (variants with 8 or 9 linear axes)
• Variants available: 16/8, 26/8, 32/8, 16/9, 26/9, 32/9
• Maximum bar diameters (by variant): 16 mm; 25.4 mm; 32 mm (38 mm without guidebush)
• Number of C axes: 2 (all variants)
• Optional B‑axis available
• Total number of tool positions: 42 (all variants)
• Positions for rotating tools: 18 (all variants)
• Quick guidebush conversion for flexibility
• Simplified programming via TISIS
• Optional ACB Plus for chip management
• Double gang tool configuration available for efficiency
• Interchangeable tooling to reduce transition costs
• Long Z1‑axis mode for extended workpiece length
• Support for driven/rotating tools with advanced motor configurations
