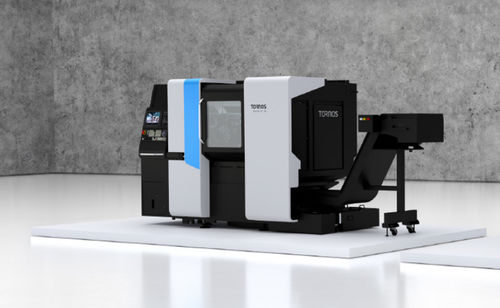

CNC Swiss lathe Swiss XT

8-axisfor bar machininghigh-productivity

Overview
Compact Swiss-type automatic lathe series combining versatility and precision in a small footprint (3056 x 1440 x 2242 mm). Designed for multi-tool production and extended bar processing.

Main advantages

• High productivity through elevated spindle speed and power
• Quick guidebush conversion for flexible bar handling
• Simplified programming and job setup with TISIS
• Optional plug-and-play B-axis to expand machining possibilities
• Double gang tool configuration to reduce cycle times
• Optional ACB Plus for improved chip control
• Interchangeable tooling to lower changeover costs
• Design considerations for sustainability and uptime
• Multi-tool operations to maximize output
• Long Z1-axis mode for extended workpiece length
• Advanced motor configurations for driven tools

Description
The Swiss XT series offers three independent tool systems with configurable axis packages (8 or 9 linear axes) and optional features to cover a wide range of precision turning applications. Available variants cover bar diameters from 16 to 32 mm (38 mm without guidebush in specific setups). The layout provides an accessible machining area and a high tool count in a compact footprint.

Video highlights (titles)

• Swiss XT 32 overview
• Swiss XT 32 - machining area
• Swiss XT 32 - tooling
• Swiss XT - family overview

Technical table (family variants)
Swiss XT | |16/8 |26/8 |32/8 |16/9 |26/9 |32/9
Max bar diameter (mm) | |16 |25.4 |32 (38 without guidebush) |16 |25.4 |32 (38 without guidebush)
Number of linear axes | |8 |8 |8 |9 |9 |9
Number of C axes | |2 |2 |2 |2 |2 |2
B axis | |Optional |Optional |Optional |Optional |Optional |Optional
Number of independent tool systems | |3 |3 |3 |3 |3 |3
Total number of tool positions | |42 |42 |42 |42 |42 |42
Position for rotating tools | |18 |18 |18 |18 |18 |18

Technical specifications

• Series / model name: Swiss XT
• Brand: Tornos
• Dimensions (W x D x H): 3056 x 1440 x 2242 mm
• Tool systems: 3 independent tool systems
• Guidebush: convertible for quick change
• Control / Programming: TISIS (simplified programming)
• Optional B-axis: plug-and-play
• Tool configuration: double gang tool configuration supported
• Chip management: ACB Plus available as an option
• Interchangeable tooling for reduced changeover cost
• Sustainability-oriented design features
• Multi-tool operations capability
• Long Z1-axis mode for extended workpiece length
• Advanced motor configurations for driven/rotating tools
• Max bar diameters by variant: 16 mm; 25.4 mm; 32 mm (38 mm without guidebush)
• Number of linear axes: 8 or 9 (depends on variant)
• Number of C axes: 2
• Total tool positions: 42
• Positions for rotating tools: 18
