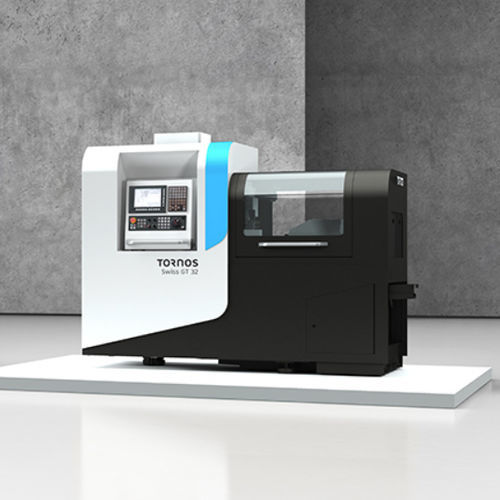

CNC Swiss lathe Swiss GT

5-axis or more40 toolsfor small workpieces

Overview
Swiss GT is a range of Swiss-type automatic lathes designed for efficient production of short and long turned parts. The lineup provides easy access to tool positions and simplified maintenance via automatic lubrication, a swarf tray and a high-volume removable oil pan. Models cover three diameter classes and modular configurations to adapt to varied production needs.

Main advantages

• Ergonomic, modular design
• Operation with or without guide bushing
• Optional B axis to expand capabilities
• Optional simultaneous 5-axis machining
• Modular tooling system on rear platen
• Easy setup and adjustment
• Designed for precision turning of long and short parts

Functional details

• Available models: Swiss GT 13, Swiss GT 26, Swiss GT 32 (also 26B and 32B with B axis)
• Swiss GT 26 and Swiss GT 32 can be configured with up to 40 tool positions (including up to 14 driven tools); Swiss GT 13 supports up to 30 positions (including up to 12 driven tools)
• Y axis available for advanced secondary operations to reduce or avoid reworking
• Optional B axis (on 26B and 32B) provides a modular position accepting either a 4th rotating drilling station or a thread-whirling head
• Modular rear tooling allows flexible configurations for a wide range of parts

Technical comparison (table)
Swiss GT | 13 | 26 | 26B | 32 | 32B
Maximum diameter (mm) | 13 | 25.4 | 25.4 | 32 | 32
Number of linear axes | 6 | 6 | 6 | 6 | 6
Number of C axes | 2 | 2 | 2 | 2 | 2
B axis | - | - | Yes | - | Yes
Number of independent tool systems | 2 | 2 | 2 | 2 | 2
Total number of tool positions | 30 | 40 | 36 | 40 | 36
Position for rotating tools | 12 | 14 | 16 | 14 | 16

Technical specifications

• Models: Swiss GT 13, Swiss GT 26, Swiss GT 26B, Swiss GT 32, Swiss GT 32B
• Maximum workpiece diameter: 13 mm (GT 13), 25.4 mm (GT 26 / 26B), 32 mm (GT 32 / 32B)
• Linear axes: 6
• C axes: 2
• B axis: optional on 26B and 32B (modular position for additional rotating drilling station or thread-whirling head)
• Total tool positions: up to 40 depending on model
• Rotating tool positions: up to 16 depending on model
• Y axis available for secondary operations
• Standard equipment: automatic lubrication unit, swarf tray and removable high-volume oil pan
