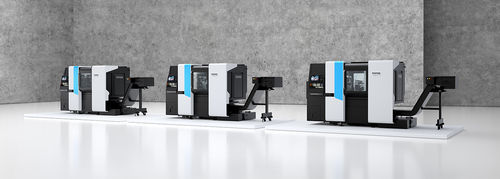

CNC Swiss lathe Swiss XT

8-axisfor mass productionfor bar machining

Overview
The Swiss XT series is a compact sliding-headstock lathe family designed for precision turning with a small footprint and configurable axis/tooling options. It targets applications requiring multi-tool operations, short-cycle micromechanics and cost-efficient production.

Main advantages

• High spindle speed and power to maximize productivity
• Quick guide-bush conversion for fast changeovers
• Simplified programming via TISIS control
• Optional plug-and-play B-axis to expand machining capability
• Double gang tool configuration for reduced cycle times
• Affordable ACB Plus option for effective chip evacuation
• Interchangeable tooling to lower tooling-change costs
• Designed for precision and sustainable operation
• Multi-tool operations to increase throughput
• Long Z1-axis mode for extended workpiece lengths
• Advanced motor options for rotating-tool functions

Description
The Swiss XT combines compact external dimensions (3056 x 1440 x 2242 mm) with three independent tool systems and multiple configurable axis options. Its architecture supports turning, milling and multi-axis operations through optional modules. Machine access is optimized for operator ergonomics and part handling, while the platform provides a market-oriented cost structure suitable for production of precision components.

Technical overview (family variants)
Variants: Swiss XT 16/8 | 26/8 | 32/8 | 16/9 | 26/9 | 32/9
Max bar diameter (mm): 16 | 25.4 | 32 (38 without guidebush)
Number of linear axes: 8 | 8 | 8 | 9 | 9 | 9
Number of C axes: 2 | 2 | 2 | 2 | 2 | 2
B axis: Optional | Optional | Optional | Optional | Optional | Optional
Independent tool systems: 3 | 3 | 3 | 3 | 3 | 3
Total tool positions: 42 | 42 | 42 | 42 | 42 | 42
Rotating-tool positions: 18 | 18 | 18 | 18 | 18 | 18

Applications & options
Suitable for micromechanics, automotive components, medical & dental parts, electronics and other precision sliding-headstock turning sectors. Options include B-axis, ACB Plus chip management, double gang tool setup, rotating-tool motor upgrades and long Z1-axis modes for extended parts.

Technical specifications

• External dimensions: 3056 x 1440 x 2242 mm
• Three independent tool systems
• Guide-bush convertible for flexibility
• Optional plug-and-play B-axis
• Double gang tool configuration available
• ACB Plus option for chip control
• Interchangeable tooling for reduced changeover cost
• Long Z1-axis mode for extended workpiece lengths
• Support for multi-tool and rotating-tool operations (18 rotating-tool positions)
• Total tool positions: 42
