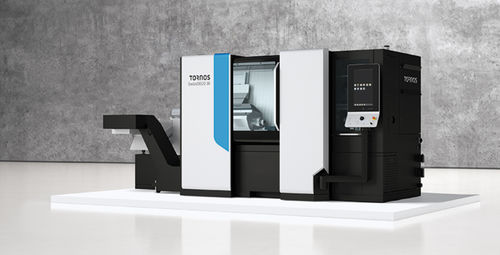

Live tool tool turret SwissDECO TB

Description The SwissDECO TB turret fitted with a B axis converts the machine into a compact turning/milling solution, enabling complex milling operations on a single unit. Optional configurations include 5-axis simultaneous machining and a quick-change tooling system (as available on the T version). The model is offered for 36 mm bar capacity and supports up to 57 tool positions, 36 of which can be driven (rotating) tools.

Features

• B axis integrated on turret to add milling capability to the turret
• Combined turning and milling on one machine for reduced setups
• Optional 5-axis simultaneous machining for complex contours
• Optional quick-change tooling system compatible with T version
• Bar/spindle capacity: 36 mm
• Up to 57 total tool positions, including up to 36 driven tool positions

Technical specifications

• Model: SwissDECO TB (turret with B axis)
• Bar capacity / work diameter: 36 mm
• Total tool positions: up to 57
• Driven (rotating) tool positions: up to 36
• Simultaneous axes: up to 5 (optional)
• Tooling: optional quick-change tooling system
• Function: combined turning and milling (turn-mill capability)

Documentation & video

• Product brochure: SwissDECO series
• Turning brochure
• Milling brochure
• Product video available (example: SwissDECO 36 TB)
