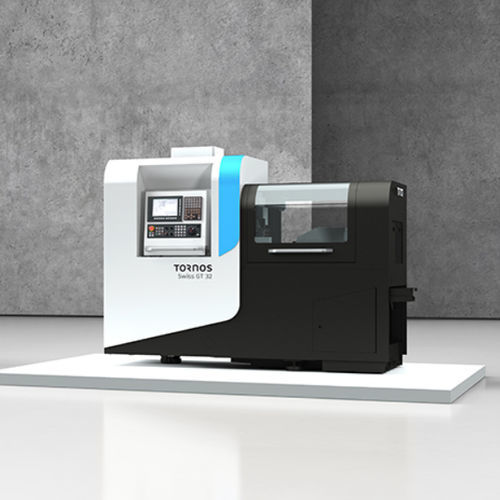

CNC Swiss lathe Swiss GT

6-axis40 toolsfor small parts production

Overview
Automatic Swiss-type turning machines offering a complete standard equipment package. The Swiss GT range provides easy access to all tool positions and straightforward maintenance via automatic lubrication, swarf tray and a large removable oil pan. Available in 13, 25.4 and 32 mm diameters for economical production of long and short turned parts.

Main advantages

• Ergonomic, modular design
• Operation with or without guide bushing
• B axis option for extended machining capability
• Optional simultaneous 5-axis machining
• Modular tooling system on rear platten
• Simple setup and adjustment
• High tooling capacity (up to 40 positions)

Functional details
The Swiss GT 26 and Swiss GT 32 accept up to 40 tool positions (including 14 driven tools); the Swiss GT 13 accepts up to 30 (including 12 driven). The Y axis increases counter-spindle machining capability and can enable some complex parts to be produced without secondary operations. The modular B axis available on the 26B and 32B provides a position for a fourth rotating drilling station or a thread-whirling head.

Comparison table (selected key items)
Swiss GT | 13 | 26 | 26B | 32 | 32B
Maximum diameter (mm) | 13 | 25.4 | 25.4 | 32 | 32
Number of linear axes | 6 | 6 | 6 | 6 | 6
Number of C axes | 2 | 2 | 2 | 2 | 2
B axis | - | - | Yes | - | Yes
Number of independent tool systems | 2 | 2 | 2 | 2 | 2
Total number of tool positions | 30 | 40 | 36 | 40 | 36
Position for rotating tools | 12 | 14 | 16 | 14 | 16

Applications
Designed for economical, high-volume production of long and short turned parts across micromechanics, electronics, medical/dental and automotive sectors. Y and optional B axes extend feasible operations and reduce secondary machining needs.

Technical specifications

• Series: Swiss GT (Swiss GT 13, 26, 26B, 32, 32B)
• Available diameters: 13 mm, 25.4 mm, 32 mm
• Number of linear axes: 6
• Number of C axes: 2
• B axis: optional on 26B and 32B (modular position for 4th rotating drilling station or thread-whirling head)
• Y axis: improves counter-spindle operations to limit rework
• Total tool positions: up to 40 (model dependent)
• Rotating tool positions: up to 16 (model dependent)
• Independent tool systems: 2
• Standard equipment: automatic lubrication unit, swarf tray, removable high-volume oil pan
