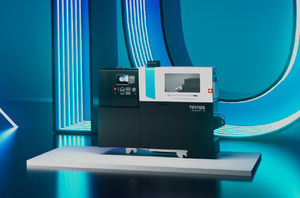

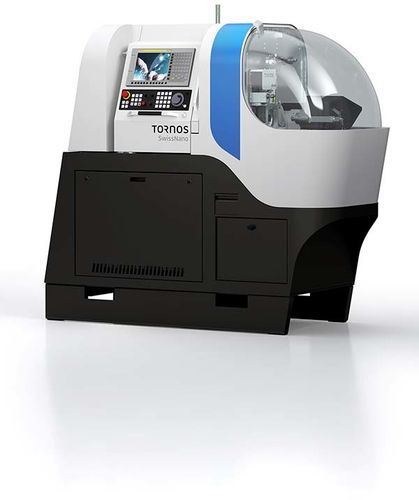

CNC Swiss lathe SwissNano

6-axisfor small parts productionfor small workpieces

Overview Designed for micro- and nano-precision production of small-diameter parts. Optimized kinematics and thermal balance deliver rapid stabilization and repeatable accuracy. Accepts bar diameters up to 10 mm and workpiece lengths up to 100 mm. Compatible with Tornos’ Active Chip Breaker Plus to enhance unattended production autonomy.

Main advantages

• Exceptional precision for watchmaking and microcomponents
• Multi-function kinematics for turning, drilling, cutting/deburring and roughing/finishing
• Excellent accessibility for fast setup and adjustment
• Supports fixed or rotating guide bush, or operation without guide bush
• Compact footprint: 1.1 m front space with bar feeder; machine width 0.65 m

Product description The SwissNano is engineered to produce very small workpieces with the highest levels of finish and dimensional control. Its kinematic layout enables manufacturing of complex watch movement components and other micro parts, combining turning and milling operations with excellent surface quality. Design emphasis on balance and thermal management ensures quick attainment of operating temperature and consistent results in series production.

Variants and key table (by model)
SwissNano 4 — Maximum diameter (mm): 4 — Linear axes: 6 — C axes: 2 — Independent tool systems: 2 — Total tool positions: 12 — Rotating tool positions: 4
SwissNano 7 — Maximum diameter (mm): 7 — Linear axes: 6 — C axes: 2 — Independent tool systems: 2 — Total tool positions: 24 — Rotating tool positions: 10
SwissNano 10 — Maximum diameter (mm): 10 — Linear axes: 6 — C axes: 2 — Independent tool systems: 2 — Total tool positions: 24 — Rotating tool positions: 10

Additional technical and usage notes

• Kinematics specifically designed for micro components with superior surface finish
• Balanced structure and thermal control for fast stabilization
• Supports back operation with up to 2 live tools for increased part complexity
• High-pressure ready for demanding chip evacuation and machining conditions

Technical specifications

• Series / name: SwissNano
• Maximum bar diameter: up to 10 mm (SwissNano 10)
• Maximum workpiece length: up to 100 mm
• Productivity gain: up to 40% (manufacturer statement)
• Number of linear axes: 6
• Number of C axes: 2
• Independent tool systems: 2
• Total tool positions: 12 (4-model) / 24 (7-model & 10-model)
• Rotating tool positions: 4 (4-model) / 10 (7-model & 10-model)
• Guide bush options: fixed, rotating or no guide bush
• Footprint: 1.1 m front space with bar feeder; width 0.65 m
• Software compatibility: Tornos Active Chip Breaker Plus
