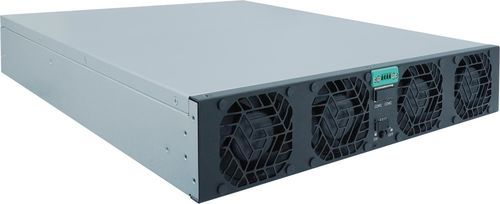

Digital power module TPS-BM70053KTIF-S

BiDi ACDCDCAC

Product Overview
The TPS-BM70053KTIF-S is a bidirectional three-phase AC-DC power module engineered for flexible high-power energy conversion. Rated at 53 kW with a 700 VDC output, it employs soft switching technology to minimize switching losses, operates with no neutral line current and supports 2 ms fast switching between modes. The unit accepts 342–460 VAC (rated 380/400/415 VAC) and achieves high efficiency (96% AC→DC, 95% DC→AC) with power factor >0.99 and THDi <5%. Modular architecture, forced-air cooling and integrated CAN/RS485 communications enable straightforward integration, maintenance and monitoring. Compact dimensions (435×86×600 mm) and weight ≤23 kg make it suitable for industrial applications such as battery PACK aging tests and energy recycling. Certified to IEC62477-1 and EN55032; UL, CE and TUV certified.

Key Features

• Bidirectional three-phase AC-DC energy conversion for charge/discharge and grid-interactive applications
• No neutral line current for improved system safety and efficiency
• Soft switching technology to reduce switching losses and improve reliability
• High efficiency: 96% (AC→DC) and 95% (DC→AC)
• Excellent electrical performance: power factor >0.99 and THDi <5%
• Fast 2 ms switching between operating modes for operational flexibility
• High power capacity: 53 kW rating
• Input/output stability: 342–460 VAC input range (rated 380/400/415 VAC), 700 VDC output
• Modular design for expansion and simplified maintenance
• Forced-air cooling for reliable thermal management under varying loads
• Integrated communication: CAN and RS485 interfaces for control and monitoring
• Compact footprint and manageable weight: 435×86×600 mm, ≤23 kg
• Standards & certifications: IEC62477-1, EN55032; UL, CE, TUV

Technical Specifications

• Model: TPS-BM70053KTIF-S
• Power rating: 53 kW
• Efficiency: 96% (AC→DC), 95% (DC→AC)
• Input voltage range: 342–460 VAC (rated 380/400/415 VAC)
• Output voltage: 700 VDC
• Input current: ≤94 A (AC→DC)
• Output current: 75.8 A (AC→DC)
• Switching time between modes: 2 ms
• Power factor: >0.99
• Total harmonic distortion (THDi): <5%
• Cooling: Forced air cooling
• Communications: CAN, RS485
• Dimensions (L×W×H): 435×86×600 mm
• Weight: ≤23 kg
• Standards / Certifications: IEC62477-1, EN55032, UL, CE, TUV
