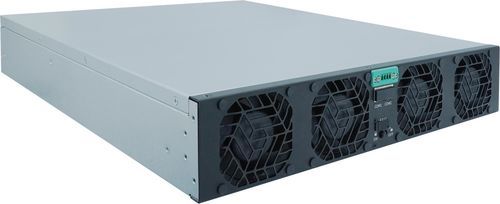

ACDC power module TPS-BM57050KTIF-S

Product Overview
The TPS-BM57050KTIF-S bidirectional power module is a high-performance three-phase AC-DC bidirectional module designed for versatile energy conversion. It operates without neutral line current and uses advanced soft switching technology to enhance reliability and reduce energy loss. The module delivers up to 50,000 W power with high efficiency (96% AC to DC, 95% DC to AC), a high power factor (PF > 0.99) and low total harmonic distortion (THDi < 5%), providing stable and clean power output. It features a modular design, forced air cooling, and integrates CAN and RS485 communication for monitoring and control. The unit complies with IEC62477-1 and EN55032 and holds UL, CE and TUV certifications.

Main Features

• Bidirectional & Three-phase design enabling AC↔DC energy conversion.
• No neutral line current operation for improved safety and efficiency in three-phase systems.
• Advanced soft switching technology to reduce switching losses and increase reliability.
• High efficiency: 96% (AC→DC) and 95% (DC→AC).
• Excellent electrical performance: Power Factor > 0.99 and THDi < 5%.
• High power capacity: 50,000 W (50 kW).
• Input: 380/400/415 VAC (rated), operating range 342–460 VAC; Input current ≤ 88 A (AC→DC).
• Output: 570 VDC (nominal) and 342–460 VAC range; Output current up to 87.8 A (AC→DC).
• Modular design for easy expansion and maintenance.
• Forced air cooling to maintain stable operation under load.
• Integrated communication: CAN and RS485 interfaces.
• Compact dimensions and manageable weight for installation.
• Compliant with IEC62477-1 and EN55032; certified UL, CE, TUV.

Caractéristiques / Spécifications techniques

• Air Flow: From front to rear
• Dimensions (L × W × H): 435 × 86 × 600 mm
• Efficiency: 95% (DC to AC), 96% (AC to DC)
• Input Current: ≤ 88 A (AC to DC), 87.8 A (DC to AC)
• Input Power: 50,000 W (DC to AC)
• Input Voltage: 342–460 VAC, 570 VDC
• Output Current: 87.8 A (AC to DC)
• Output Power: 50,000 W (AC to DC)
• Output Voltage: 570 VDC, 342–460 VAC
• Output Voltage Accuracy: ±1% (AC to DC)
• Rated Input Voltage: 380 VAC, 400 VAC, 415 VAC
• Weight: ≤ 23 kg
• Article Number: HPM1295
• Manufacturer Code: HPM010050
• Manufacturer: TPS
