ACDC power module TPS-BM159000THIRT

BiDi ACDC

Product Details

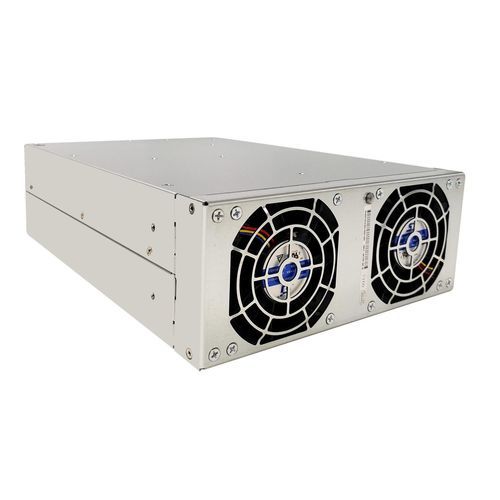

TPS-BM159000THIRT Power Module
The TPS-BM159000THIRT is a high-performance power module, paired with the TPS-BM159000THIT bidirectional power module, designed as a three-phase AC-DC bidirectional module. It adopts advanced three-phase no neutral line technology, eliminating neutral line current issues in power systems. Equipped with mature soft switching technology, it ensures reliable and efficient bidirectional energy conversion, suitable for applications such as cell formation test equipment, power bidirectional test equipment, and energy recyclable power aging equipment.

As a 92%/91.5% high efficiency power module, it achieves a peak efficiency of 92% in AC to DC direction and 91.5% in DC to AC direction, significantly reducing energy consumption. It features high power factor (PF >0.99, PF=0.99@380VAC full load) and low total harmonic distortion of input current (THDi <5%, THDi<5%@380VAC full load), ensuring excellent grid compatibility.

This 9000W/7200W bidirectional power module delivers 9000W rated output capacity in AC to DC direction and 7200W rated input capacity in DC to AC direction. It operates as a 380/400/415VAC input module with an AC input voltage range of 343~456VAC (full load) and 304~343VAC (derating to 80%), and a frequency range of 50/60±5Hz. As a 15VDC output power module, it provides 15VDC DC output with rated currents of 600A (AC to DC) and 480A (DC to AC), while the AC input current is ≤17A.

Key Features

• Bidirectional Energy Flow: Functions as a three-phase AC-DC bidirectional module, supporting seamless isolation and energy conversion, ensuring reliable performance in grid-connected systems.
• Advanced Technologies: Integrates soft switching technology for enhanced reliability and efficiency; achieves high PF (>0.99) and low THDi (<5%) for optimal grid performance.
• High Efficiency: Boasts 92% peak efficiency (AC to DC) and 91.5% peak efficiency (DC to AC), minimizing energy loss and reducing operational costs.
• Robust Adaptability: Operates at full load in -10°C~45°C, with derating to 90% at 45°C~55°C; adapts to unstable grids and harsh environments, equipped with perfect fault protection functions.
• Cooling & Communication: Features forced air cooling with intelligent control (air flow options include front inlet/rear outlet and R-type rear inlet/front outlet) and CAN communication for efficient operation and monitoring.
• Compact Design: Measures 218mm x 86mm x 300mm and weighs 6.5kg, ideal for space-constrained industrial installations.
• Certifications & Compliance: Can pass UL, CE, TUV certification and meets EN55032 standards, ensuring global compatibility.
• Expandability: Modular design supports intelligent expansion with automatic parallel operation, suitable for scalable system configurations.

Specifications
Parameter | Value
Air Flow | From rear to front
Dimensions (L*W*H)(mm) | 218*86*300
Efficiency | 91.5%(DC to AC), 92%(AC to DC)
Input Current | ≤17A(AC to DC), 480A(DC to AC)
Input Power | 7200W(DC to AC)
Input Voltage | 15Vdc, 343-456Vac
Output Current | 600A(AC to DC)
Output Power | 9000W(AC to DC)
Output Voltage | 15Vdc, 343-456Vac
Output Voltage Accuracy | 1%(AC to DC)
Rated Input Voltage | 380Vac, 400Vac, 415Vac
Weight | ≤6.5kg

Characteristics / Technical Specifications

• Three-phase AC-DC bidirectional module
• No neutral line current
• Soft switching technology
• Peak efficiency: 92% (AC to DC), 91.5% (DC to AC)
• High power factor: >0.99
• Low THDi: <5%
• Rated output: 9000W (AC to DC), 7200W (DC to AC)
• Input voltage: 343~456VAC (full load), 304~343VAC (derating to 80%)
• Frequency: 50/60±5Hz
• DC output: 15VDC
• Rated currents: 600A (AC to DC), 480A (DC to AC)
• AC input current: ≤17A
• Operating temperature: -10°C~45°C (full load), 45°C~55°C (derating to 90%)
• Forced air cooling
• CAN communication
• Dimensions: 218mm x 86mm x 300mm
• Weight: ≤6.5kg
• UL, CE, TUV certified
• EN55032 compliant
• Modular design, supports parallel operation
