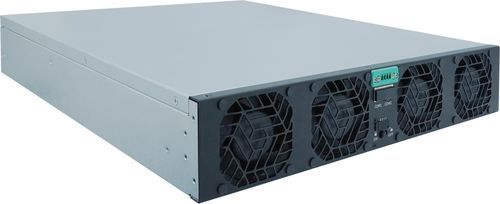

AC power module TPS-BM63053KTIT

BiDi ACDCDC

Overview
The TPS-BM63053KTIT is a three-phase bidirectional AC‑DC power module designed for industrial high-power energy conversion. It supports both AC→DC and DC→AC modes with soft-switching technology, delivering efficiencies up to 96% (AC→DC) and 95% (DC→AC). The module operates without neutral line current, provides PF > 0.99 and THDi < 3%, and is intended for applications such as battery PACK testing, bidirectional power testing, energy recycling and aging. Built with a modular architecture, forced-air cooling and onboard CAN/RS485 communications, it meets IEC62477-1 and EN55032 standards and is UL, CE and TUV certified.

Key Features

• Three-phase bidirectional AC‑DC topology for reversible energy flow
• No neutral line current operation
• Soft‑switching technology to reduce switching losses
• High efficiency: 96% (AC→DC), 95% (DC→AC)
• High power factor (PF > 0.99) and low THDi (< 3%)
• Rated power: 53,000 W (53 kW)
• Input/output ranges: 342–460 VAC and 630 VDC (rated 380/400/415 VAC)
• Input current ≤94 A (AC→DC); output current 84.2 A (DC→AC)
• Modular design for capacity scaling and simplified maintenance
• Forced‑air cooling (airflow: front to rear)
• CAN and RS485 interfaces for monitoring and control
• Compact dimensions (435 × 86 × 600 mm) and weight ≤23 kg
• Standards: IEC62477-1, EN55032; Certifications: UL, CE, TUV

Technical specifications

• Rated power: 53,000 W
• Efficiency: 96% (AC to DC), 95% (DC to AC)
• Input voltage: 342–460 VAC (rated 380/400/415 VAC)
• Output voltage: 630 VDC / 342–460 VAC
• Input current: ≤94 A (AC→DC)
• Output current: 84.2 A (DC→AC)
• Output voltage accuracy: ±1% (AC→DC)
• Air flow: front to rear
• Dimensions (L×W×H): 435 × 86 × 600 mm
• Weight: ≤23 kg
