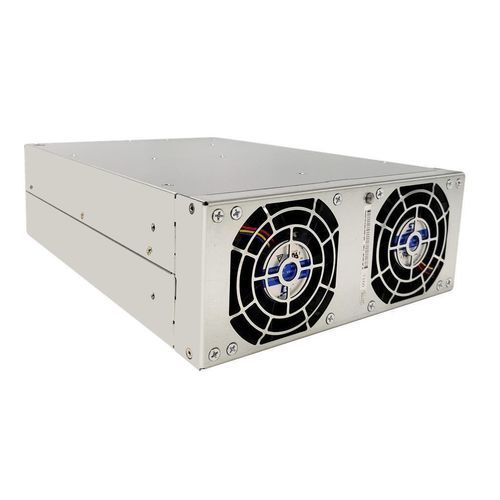

BiDi ACDC power module TPS-BM159000UHIRT

Product Details
The TPS-BM159000UHIRT is a high-performance power module that, along with the TPS-BM159000UHIT bidirectional power module, belongs to the three-phase AC-DC bidirectional module family. It adopts advanced three-phase no neutral line technology, qualifying as a no neutral line current power module to eliminate neutral line current issues in power systems. Leveraging mature soft switching technology, it ensures reliable and efficient bidirectional energy conversion, making it ideal for cell formation test equipment, power bidirectional test equipment, and energy recyclable power aging equipment.

As a 92%/91.5% high efficiency power module, it achieves 92% peak efficiency @480VAC in AC to DC direction and 91.5% peak efficiency @480VAC in DC to AC direction, reducing energy consumption significantly. It features high power factor (PF >0.99 @480VAC full load) and low input current total harmonic distortion (THDi <5% @480VAC full load), ensuring excellent grid compatibility.

This 9000W/7200W bidirectional power module delivers 9000W rated output capacity (AC to DC) and 7200W rated input capacity (DC to AC). It operates as a 480VAC input power module with an AC input range of 384~528VAC and 50/60±5Hz frequency. As a 15.5VDC output power module, it provides 15.5VDC DC output with 580A (AC to DC) and 480A (DC to AC) rated currents, while AC input current is <15A.

Key Features

• Bidirectional Energy Flow: Functions as a three-phase AC-DC bidirectional module, supporting seamless isolation and energy conversion to meet fast response needs of test equipment.
• Advanced Technologies: Integrates soft switching technology for enhanced reliability; achieves high PF (>0.99) and low THDi (<5%) for optimal grid performance.
• High Efficiency: Boasts 92% (AC to DC@480VAC) and 91.5% (DC to AC@480VAC) peak efficiency, minimizing energy loss.
• Robust Adaptability: Operates at full load in -10°C~45°C (derating to 90% at 45°C~60°C), adapting to unstable grids and harsh environments with comprehensive fault protection.
• Cooling & Communication: Equipped with forced air cooling with intelligent control; features R-type air flow (rear inlet and front outlet, front: fan; rear: terminal) for efficient heat dissipation. Supports CAN communication for easy monitoring.
• Compact Design: Measures 218mm x 86mm x 300mm and weighs 6.5kg, suitable for space-constrained setups.
• Certifications & Compliance: Passes UL, CE, TUV certification and complies with EN55032 standards.
• Expandability: Modular design allows up to 4 units in parallel for flexible system scaling.

Specifications
Parameter | Value
Air Flow | From rear to front
Dimensions (L*W*H)(mm) | 218*86*300
Efficiency | 91.5%(DC to AC), 92%(AC to DC)
Input Current | ≤15A(AC to DC), 480A(DC to AC)
Input Power | 7200W(DC to AC)
Input Voltage | 15Vdc, 384-528Vac
Output Current | 580A(AC to DC)
Output Power | 9000W(AC to DC)
Output Voltage | 15.5Vdc, 384-528Vac
Output Voltage Accuracy | 1%(AC to DC)
Rated Input Voltage | 480Vac
Weight | ≤6.5kg

Caractéristiques / spécifications techniques

• Model: TPS-BM159000UHIRT
• Article Number: HPM1147
• Manufacturer Code: HPM010019
• Manufacturer: TPS
• Three-phase AC-DC bidirectional module
• No neutral line current technology
• Soft switching technology
• 92%/91.5% efficiency (AC-DC/DC-AC)
• PF >0.99, THDi <5%
• 9000W output (AC to DC), 7200W input (DC to AC)
• 15.5VDC output, <15A input current
• 580A/480A output current (AC-DC/DC-AC)
• Forced air cooling, R-type air flow
• CAN communication
• UL, CE, TUV certified, EN55032 compliant
• Dimensions: 218 x 86 x 300 mm
• Weight: ≤6.5kg
• Up to 4 units in parallel
