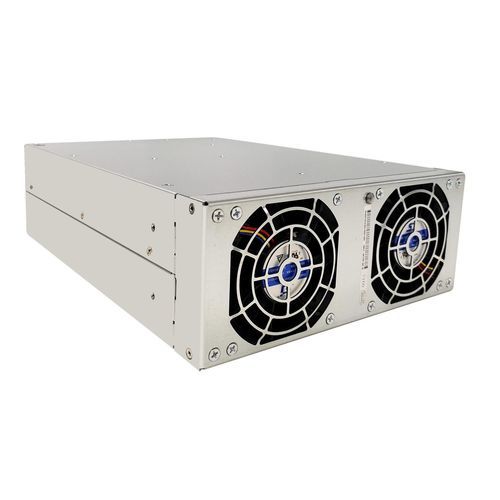

ACDC power module TPS-BM158000THIF

BiDi ACDC

Product Details
The TPS-BM158000THIF is a high-performance bidirectional power module, paired with the TPS-BM158000THIRF power module, designed as a three-phase AC-DC bidirectional module. It adopts advanced three-phase no neutral line technology, eliminating neutral line current issues in power systems. Equipped with mature soft switching technology, it ensures reliable and efficient bidirectional energy conversion, suitable for applications such as cell formation test equipment, power bidirectional test equipment, and energy recyclable power aging equipment.

As a 92%/91.5% high efficiency power module, it achieves a peak efficiency of 92%@380VAC in AC to DC direction and 91.5%@380VAC in DC to AC direction, significantly reducing energy consumption. It features high power factor (PF >0.99@380VAC full load) and low total harmonic distortion of input current (THDi <5%@380VAC full load), ensuring excellent grid compatibility.

This 8000W/6400W bidirectional power module delivers 8000W rated output capacity in AC to DC direction and 6400W rated input capacity in DC to AC direction. It operates as a 380/400/415VAC input module with an AC input voltage range of 343~456VAC (full load) and 304~343VAC (derating to 80%), and a frequency range of 50/60±5Hz. As a 15VDC output power module, it provides 15VDC DC output with rated currents of 533.3A (AC to DC) and 427A (DC to AC), while the AC input current is <16A.

Key Features

• Bidirectional Energy Conversion: Functions as a three-phase AC-DC bidirectional module, supporting seamless isolation and energy flow between AC and DC, ensuring stable performance in grid-connected systems.
• Advanced Technologies: Integrates soft switching technology for enhanced reliability and efficiency; achieves high PF (>0.99) and low THDi (<5%) for optimal grid performance.
• High Efficiency: Boasts 92% peak efficiency (AC to DC@380VAC) and 91.5% peak efficiency (DC to AC@380VAC), minimizing energy loss and operational costs.
• Robust Adaptability: Operates at full load in -10°C~45°C, with derating to 90% at 45°C~60°C; adapts to unstable grids and harsh environments, equipped with perfect fault protection functions.
• Cooling & Communication: Features forced air cooling with intelligent control and CAN communication for efficient operation and real-time monitoring.
• Compact Design: Measures 176mm x 86mm x 285mm and weighs ≤5kg, ideal for space-constrained industrial installations.
• Certifications & Compliance: Can pass UL, CE, TUV certification and meets EN55032 standards, ensuring global compatibility.
• Expandability: Modular design supports intelligent expansion with up to 4 units connected in parallel, suitable for scalable system configurations.

Specifications
Parameter | Value
Air Flow | From front to rear
Dimensions (L*W*H)(mm) | 176*86*285
Efficiency | 91.5%(DC to AC), 92%(AC to DC)
Input Current | ≤16A(AC to DC), 427A(DC to AC)
Input Power | 6400W(DC to AC)
Input Voltage | 15Vdc, 343-456Vac
Output Current | 533.3A(AC to DC)
Output Power | 8000W(AC to DC)
Output Voltage | 15Vdc, 343-456Vac
Output Voltage Accuracy | 1%(AC to DC)
Rated Input Voltage | 380Vac, 400Vac, 415Vac
Weight | ≤5kg

Characteristics / Technical Specifications

• Bidirectional three-phase AC-DC module
• No neutral line current technology
• Soft switching technology
• Peak efficiency: 92% (AC to DC), 91.5% (DC to AC)
• High power factor: >0.99
• Low THDi: <5%
• Rated output: 8000W (AC to DC), 6400W (DC to AC)
• Input voltage: 343~456VAC (full load), 304~343VAC (derating to 80%)
• Output voltage: 15VDC
• Rated output current: 533.3A (AC to DC), 427A (DC to AC)
• AC input current: <16A
• Operating temperature: -10°C~45°C (full load), derating to 90% at 45°C~60°C
• Dimensions: 176mm x 86mm x 285mm
• Weight: ≤5kg
• Forced air cooling
• CAN communication
• UL, CE, TUV certified
• EN55032 compliant
• Expandable up to 4 units in parallel
