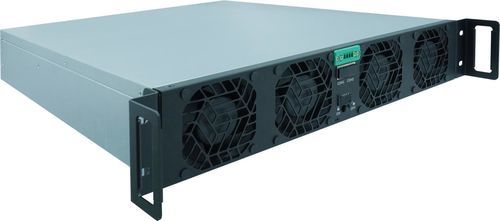

ACDC power module TPS-BM57050KTIF
Add to favorites
Compare this product
Characteristics
- Type
- ACDC
- Power
50,000 W
- Voltage
Max.: 460 V
Min.: 342 V
Description
Overview
The TPS-BM57050KTIF is a three-phase bidirectional AC-DC power module designed for high-power energy conversion without neutral line current. It uses soft-switching technology to reduce switching losses and improve reliability. The module delivers up to 50 kW with high efficiency (96% AC→DC, 95% DC→AC), a high power factor (PF >0.99) and low THDi (<5%), making it suitable for demanding industrial test benches and energy-recycling systems. It supports 380/400/415 VAC rated inputs, a 570 VDC bus output, modular expansion and forced air cooling. Integrated CAN and RS485 communications enable monitoring and control integration.
Key features
Applications
Technical specifications
Mechanical, communications & compliance
The TPS-BM57050KTIF is a three-phase bidirectional AC-DC power module designed for high-power energy conversion without neutral line current. It uses soft-switching technology to reduce switching losses and improve reliability. The module delivers up to 50 kW with high efficiency (96% AC→DC, 95% DC→AC), a high power factor (PF >0.99) and low THDi (<5%), making it suitable for demanding industrial test benches and energy-recycling systems. It supports 380/400/415 VAC rated inputs, a 570 VDC bus output, modular expansion and forced air cooling. Integrated CAN and RS485 communications enable monitoring and control integration.
Key features
- Three-phase bidirectional AC‑DC conversion with no neutral line current
- Soft-switching topology for reduced losses and improved reliability
- High efficiency: 96% (AC to DC) and 95% (DC to AC)
- Power factor >0.99 and THDi <5% for clean, stable power
- Rated power 50 000 W (50 kW)
- Rated input voltages: 380/400/415 VAC; input current ≤88 A (AC→DC)
- DC bus output: 570 VDC; output current 87.8 A (DC→AC)
- Modular design for expansion and simplified maintenance
- Forced air cooling suitable for continuous operation under load
- Communication interfaces: CAN, RS485
Applications
- Battery PACK testing and validation
- Bidirectional power testing (AC↔DC) for power electronics test benches
- Energy recycling and accelerated aging tests for storage systems
- High-power laboratory and industrial test applications
Technical specifications
- Article Number: HPM1293
- Manufacturer Code: HPM010048
- Manufacturer: TPS
- Power rating: 50 000 W
- Efficiency: 96% (AC to DC), 95% (DC to AC)
- Input voltage range: 342–460 VAC; rated: 380/400/415 VAC
- Input current: ≤88 A (AC→DC)
- DC bus voltage: 570 VDC
- Output current: 87.8 A (DC→AC)
- Output voltage range: 342–460 VAC (AC output)
- Output voltage accuracy: ±1% (AC→DC)
- Air flow: front to rear
- Dimensions (L×W×H): 435 × 86 × 600 mm
- Weight: ≤23 kg
Mechanical, communications & compliance
- Cooling: Forced air cooling
- Communication: CAN, RS485 for monitoring and control
- Design: Modular for easy expansion and maintenance
- Standards & certifications: IEC62477-1, EN55032, UL, CE, TUV
