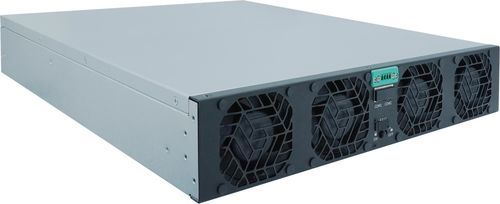

ACDC power module TPS-BM61053KTIT

Product overview
The TPS-BM61053KTIT is a bidirectional three-phase AC‑DC power module rated 53 kW. Designed for laboratory and industrial energy-conversion applications, it supports bidirectional power flow for charging/discharging tests, regenerative operation and power-system simulation. Key interfaces include CAN and RS485; the unit is modular for expansion and maintenance and uses forced-air cooling.

Performance & electrical characteristics

• Bidirectional three-phase AC‑DC conversion
• No neutral line current operation
• Soft‑switching technology to reduce switching losses and improve reliability
• Rated power: 53,000 W
• Fast mode switching: 2 ms between modes
• High power factor: PF > 0.99
• Low total harmonic distortion: THDi < 3%
• Communication: CAN and RS485 interfaces
• Cooling: Forced‑air (front to rear airflow)
• Modular design for expansion and serviceability

Efficiency notes
Efficiency values vary by operating mode. The description references 96% and 95% in different modes while the specifications table lists 94% (AC to DC) and 95% (DC to AC). Users should refer to the chosen operating point for exact efficiency.

Technical specifications

• Dimensions (L × W × H): 435 × 86 × 600 mm
• Weight: ≤ 23 kg
• Air flow: front to rear
• Input voltage range: 342–460 VAC; DC input: 280 VDC
• Rated input voltages: 380 VAC, 400 VAC, 415 VAC
• Input current: ≤ 94 A (AC to DC), 53.6 A (DC to AC)
• Input power (example): 15,000 W (DC to AC)
• Output voltage: 610 VDC; AC output: 342–460 VAC
• Output current: 86.9 A (AC to DC)
• Output voltage accuracy: ±1% (AC to DC)

Applications

• Battery pack testing and cycling
• Bidirectional power testing and emulation
• Energy recycling and aging tests
• Power-conversion research and development

Standards & compliance

• Standards: IEC 62477‑1, EN 55032
• Certifications: UL, CE, TUV; indications of RoHS, WEEE, UKCA compliance
