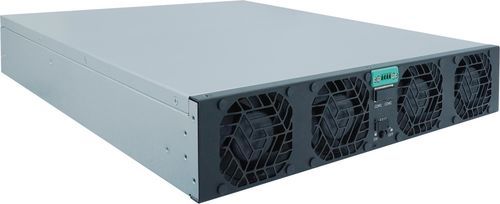

ACDC power module TPS-BM90053KTIT

Product overview
The TPS-BM90053KTIT is a 53 kW bidirectional three-phase AC-DC power module engineered for high-power energy conversion tasks such as battery pack testing and energy recycling. It features soft-switching technology to reduce switching losses, operates without neutral line current, and provides industry-grade electrical performance with efficiencies up to 96% (AC→DC) and 95% (DC→AC). The unit uses forced air cooling (front-to-rear) and a modular architecture for simplified maintenance and expansion. Integrated CAN and RS485 interfaces enable remote monitoring and control. Certified to IEC62477-1 and EN55032, with UL, CE and TUV approvals.

Key features

• Bidirectional three-phase AC-DC operation for flexible power conversion
• No neutral line current for improved safety and system compatibility
• Soft-switching topology to minimize switching losses and improve reliability
• High efficiency: 96% (AC → DC) and 95% (DC → AC)
• Strong electrical performance: power factor > 0.99, THDi < 3%
• High power rating: 53,000 W suitable for demanding industrial applications
• Input/output capability: supports 342–460 VAC (rated 380/400/415 VAC) and 900 VDC output
• Fast mode switching: 2 ms transition between operating modes
• Application-ready: designed for Battery PACK testing and energy recycling systems
• Modular design for easy expansion and reduced mean time to repair
• Forced air cooling (front to rear) for reliable thermal management
• Communication ports: CAN, RS485 for integration with BMS and PLC systems
• Compact dimensions and manageable weight: 435 × 86 × 600 mm, ≤23 kg
• Standards & certifications: IEC62477-1, EN55032; UL, CE, TUV certified

Specifications

• Model: TPS-BM90053KTIT
• Power rating: 53,000 W
• Function: Three-phase bidirectional AC-DC module
• Efficiency: 96% (AC→DC), 95% (DC→AC)
• Power factor: >0.99
• THDi: <3%
• Input voltage range: 342–460 VAC (rated 380/400/415 VAC)
• Input current (AC→DC): ≤94 A
• Output voltage: 900 VDC (also supports 342–460 VAC)
• Output current (AC→DC): 58.9 A
• Output power: 53,000 W
• Output voltage accuracy: ±1% (AC→DC)
• Switching time: 2 ms between modes
• Cooling: Forced air, airflow from front to rear
• Communications: CAN, RS485
• Design: Modular
• Dimensions (L×W×H): 435 × 86 × 600 mm
• Weight: ≤23 kg
• Certifications: IEC62477-1, EN55032; UL, CE, TUV
